1-776228-1
  • Share:

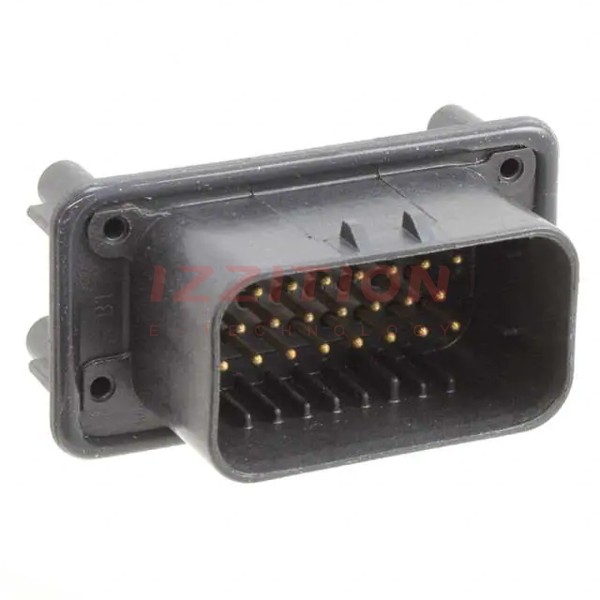

TE Connectivity AMP Connectors 1-776228-1

Manufacturer No:
1-776228-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1-776228-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 23POS 4MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.157" (4.00mm)
Number of Positions:23
Number of Rows:3
Row Spacing - Mating:0.157" (4.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Panel Mount, Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:-
Contact Shape:Circular
Contact Finish - Mating:Gold-Palladium
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Mounting Flange, Sealed
Operating Temperature:-40°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$15.77
22

Please send RFQ , we will respond immediately.
