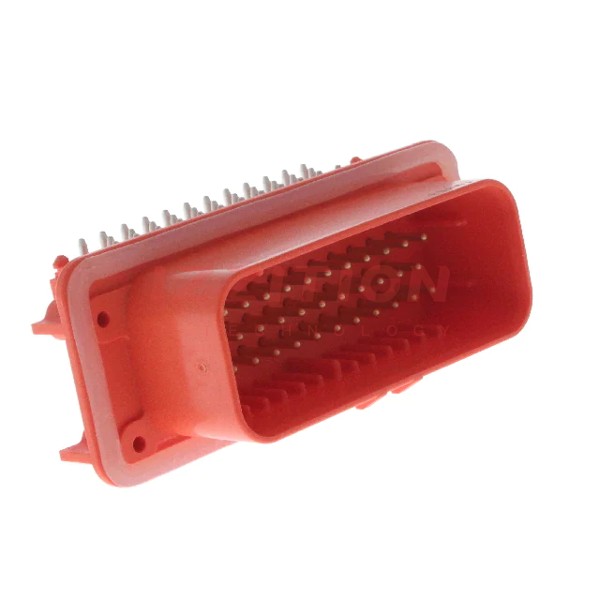

| Part Number | 1-776163-6 | 1-776163-1 | 1-776163-2 | 1-776163-4 | 1-776163-5 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
| Number of Positions | 35 | 35 | 35 | 35 | 35 |
| Number of Rows | 3 | 3 | 3 | 3 | 3 |
| Row Spacing - Mating | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
| Number of Positions Loaded | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp |
| Contact Length - Mating | - | - | - | - | - |
| Contact Length - Post | - | - | - | - | - |
| Overall Contact Length | - | - | - | - | - |
| Insulation Height | - | - | - | - | - |
| Contact Shape | Circular | Circular | Circular | Circular | Circular |
| Contact Finish - Mating | Gold-Palladium | Gold-Palladium | Gold-Palladium | Gold-Palladium | Gold-Palladium |
| Contact Finish Thickness - Mating | - | - | - | - | - |
| Contact Finish - Post | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Guide, Sealed | Board Guide, Sealed | Board Guide, Sealed | Board Guide, Sealed | Board Guide, Sealed |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | - | - | - | - | - |
| Insulation Color | Orange | Black | Natural | Gray | Blue |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge |
| Voltage Rating | 250VAC | 250VAC | 250VAC | 250VAC | 250VAC |
