Please send RFQ , we will respond immediately.

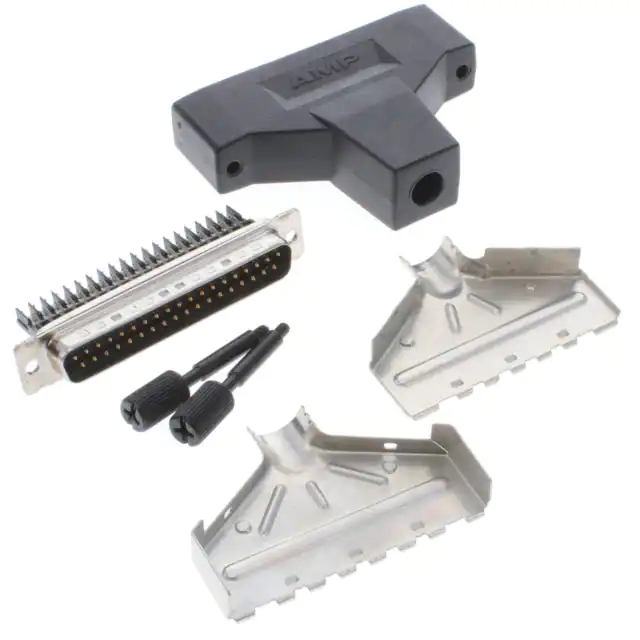

| Part Number | 1-747950-6 | 1-747150-6 | 1-747950-4 | 1-747950-5 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Style | D-Sub | D-Sub | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 37 | 9 | 37 | 37 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 4 (DC, C) | 1 (DE, E) | 4 (DC, C) | 4 (DC, C) |
| Contact Type | Signal | Signal | Signal | Signal |
| Flange Feature | Cable Side, Male Jackscrew (4-40) | Mating Side, Female Screwlock (4-40) | Cable Side, Male Jackscrew (4-40) | Cable Side, Male Jackscrew (4-40) |
| Termination | IDC, Discrete Wire | Solder | IDC, Discrete Wire | IDC, Discrete Wire |
| Primary Material | - | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | Flash | 30.0µin (0.76µm) | - | - |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | Varies by Wire Gauge | 6A | Varies by Wire Gauge | Varies by Wire Gauge |
| Backset Spacing | - | - | - | - |
| Features | Backshell, Cover, Grounding Indents, Mounting Screws, Shielded | - | Backshell, Cover, Grounding Indents, Mounting Screws, Shielded | Backshell, Cover, Grounding Indents, Mounting Screws, Shielded |
