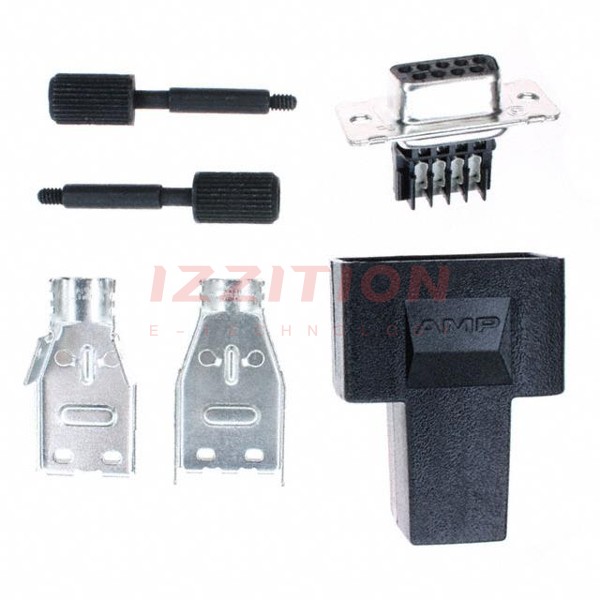

| Part Number | 1-747943-5 | 1-747943-6 | 1-747947-5 | 1-747946-5 | 1-747943-7 | 1-747944-5 | 1-747945-5 | 1-747948-5 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Style | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins |
| Number of Positions | 9 | 9 | 25 | 15 | 9 | 9 | 15 | 25 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 1 (DE, E) | 1 (DE, E) | 3 (DB, B) | 2 (DA, A) | 1 (DE, E) | 1 (DE, E) | 2 (DA, A) | 3 (DB, B) |
| Contact Type | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal |
| Flange Feature | Cable Side, Male Jackscrew (4-40) | Cable Side, Male Jackscrew (4-40) | Cable Side, Male Jackscrew (4-40) | Cable Side, Male Jackscrew (4-40) | Cable Side, Male Jackscrew (4-40) | Cable Side, Male Jackscrew (4-40) | Cable Side, Male Jackscrew (4-40) | Cable Side, Male Jackscrew (4-40) |
| Termination | IDC, Discrete Wire | IDC, Discrete Wire | IDC, Discrete Wire | IDC, Discrete Wire | IDC, Discrete Wire | IDC, Discrete Wire | IDC, Discrete Wire | IDC, Discrete Wire |
| Primary Material | - | - | - | - | - | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | - | Flash | - | 30.0µin (0.76µm) | - |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge |
| Backset Spacing | - | - | - | - | - | - | - | - |
| Features | Backshell, Cover, Mounting Hardware, Shielded | Backshell, Cover, Mounting Hardware, Shielded | Backshell, Cover, Mounting Hardware, Shielded | Backshell, Cover, Grounding Indents, Mounting Screws, Shielded | Backshell, Cover, Mounting Hardware, Shielded | Backshell, Cover, Grounding Indents, Mounting Screws, Shielded | Backshell, Cover, Mounting Hardware, Shielded | Backshell, Cover, Grounding Indents, Mounting Screws, Shielded |
