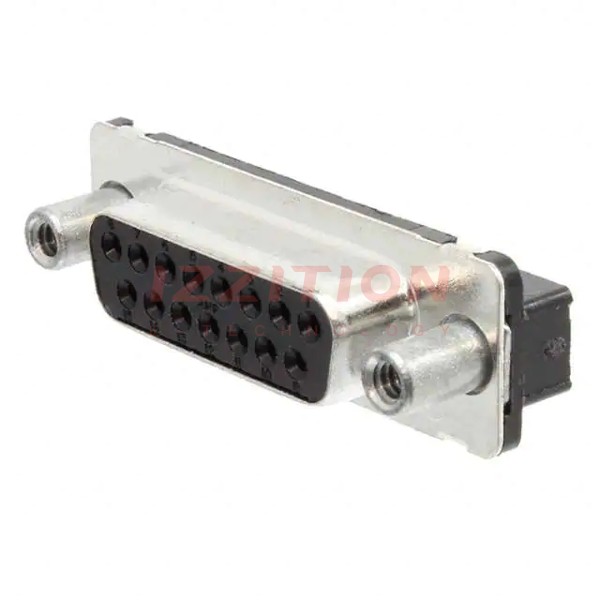

| Part Number | 1-747299-6 | 1-5747299-6 | 1-747299-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Style | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 15 | 15 | 15 |
| Number of Rows | 2 | 2 | 2 |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Shell Size, Connector Layout | 2 (DA, A) | 2 (DA, A) | 2 (DA, A) |
| Contact Type | Signal | Signal | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) |
| Termination | Solder | Solder | Solder |
| Primary Material | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 6A | 6A | 6A |
| Backset Spacing | - | - | - |
| Features | - | - | - |
