Please send RFQ , we will respond immediately.

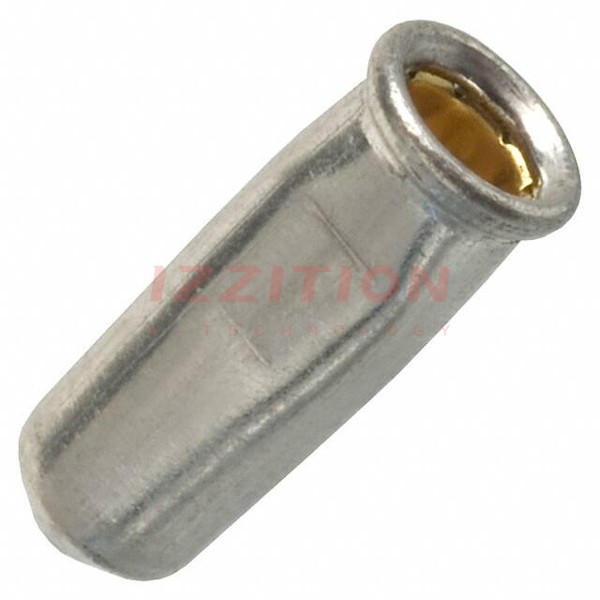

| Part Number | 1-645979-2 | 1-5645979-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active |
| Tail Type | No Tail | No Tail |
| Termination | Solder | Solder |
| Length - Overall | 0.308" (7.82mm) | 0.308" (7.82mm) |
| Accepts Pin Diameter | 0.042" ~ 0.049" (1.07mm ~ 1.24mm) | 0.042" ~ 0.049" (1.07mm ~ 1.24mm) |
| Accepts Square Pin Size | - | - |
| Pin Hole Diameter | - | - |
| Mounting Hole Diameter | 0.102" (2.59mm) | 0.102" (2.59mm) |
| Flange Diameter | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Tail Diameter | - | - |
| Socket Depth | 0.145" ~ 0.275" (3.68mm ~ 6.99mm) | 0.145" ~ 0.275" (3.68mm ~ 6.99mm) |
| Contact Material | Beryllium Copper | Beryllium Copper |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
