TE Connectivity AMP Connectors-1-6450170-9 - Backplane Connectors - Specialized Product Specifications and Latest Quotes

Connector Usage:	-
Connector Type:	Receptacle, Female Sockets and Blade Sockets
Connector Style:	Multi-Beam
Number of Positions:	22
Number of Positions Loaded:	All
Pitch:	0.100" (2.54mm)
Number of Rows:	4
Number of Columns:	-
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Contact Layout, Typical:	16 Signal, 6 Power
Features:	Board Lock, Guide Pin
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Color:	-

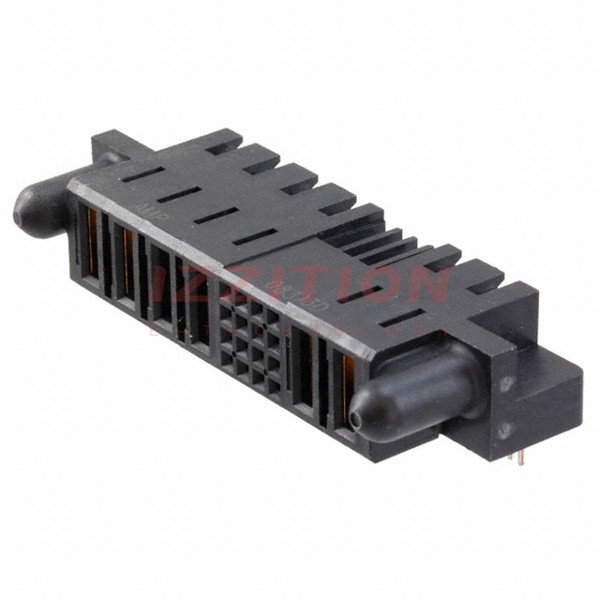

TE Connectivity AMP Connectors 1-6450170-9
