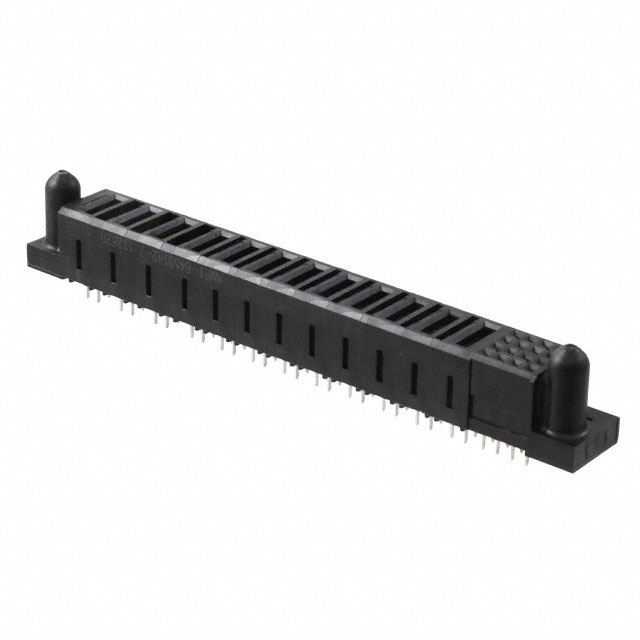

| Part Number | 1-6450142-7 | 1-6450542-7 | 1-6450142-3 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete |
| Connector Usage | - | - | - |
| Connector Type | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Sockets and Blade Sockets |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 28 | 36 | 26 |
| Number of Positions Loaded | All | All | All |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 4 | 4 | 4 |
| Number of Columns | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Press-Fit | Solder |
| Contact Layout, Typical | 16 Signal, 9 Power | 32 Signal, 4 Power | 20 Signal, 6 Power |
| Features | Guide Pin | Guide Pin | Board Lock, Guide Pin |
| Contact Finish | Gold | - | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | - | 30.0µin (0.76µm) |
| Color | Black | Black | Black |
