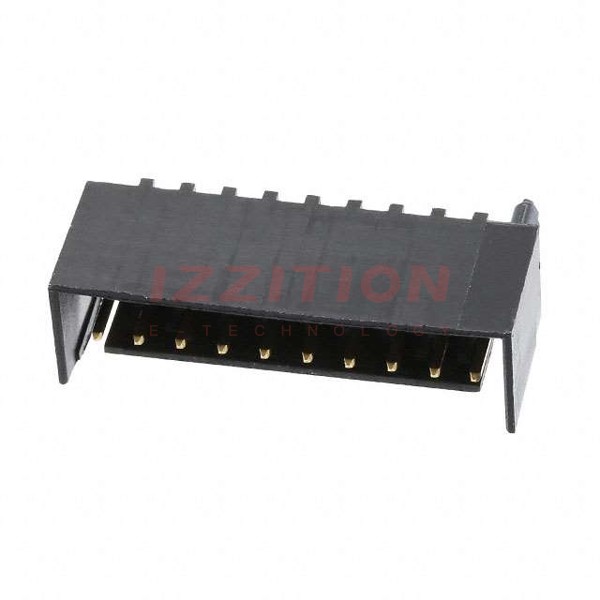

| Part Number | 1-644897-0 | 1-644893-0 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions | 10 | 10 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Friction Lock | Friction Lock |
| Contact Length - Mating | 0.280" (7.11mm) | 0.280" (7.11mm) |
| Contact Length - Post | 0.140" (3.56mm) | 0.140" (3.56mm) |
| Overall Contact Length | 0.520" (13.21mm) | 0.520" (13.21mm) |
| Insulation Height | 0.410" (10.41mm) | 0.410" (10.41mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Gold | Tin-Lead |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | - |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Material | Copper Alloy | Copper Alloy |
| Insulation Material | Polyester | Polyester |
| Features | Board Guide | Board Guide |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Voltage Rating | 250VAC | 250VAC |
