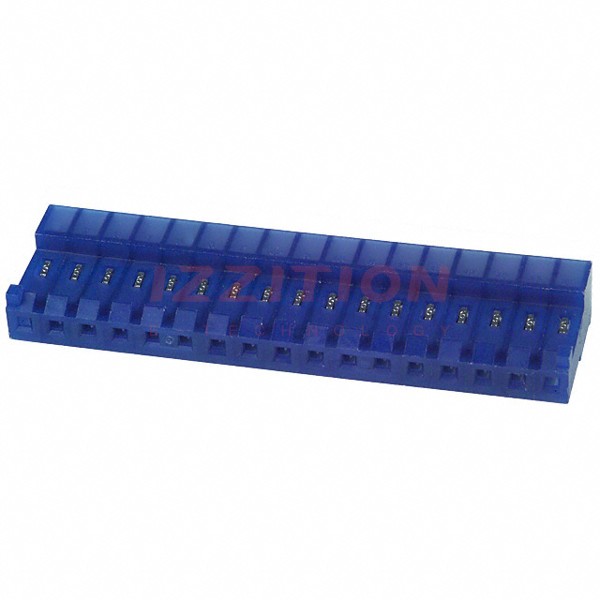

TE Connectivity AMP Connectors 1-643821-7

Manufacturer No:
1-643821-7
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1-643821-7 Datasheet
ECAD Model:
-
Description:
CONN RCPT 17P IDC 26AWG TIN-LEAD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Number of Positions:17
Pitch:0.156" (3.96mm)
Number of Rows:1
Row Spacing:-
Mounting Type:Free Hanging (In-Line)
Fastening Type:Locking Ramp
Cable Termination:IDC
Wire Type:Discrete or Ribbon Cable
Wire Gauge:26 AWG
Features:Closed End, Polarizing Key
Contact Finish:Tin-Lead
Contact Finish Thickness:80.0µin (2.03µm)
Color:Blue
0 Remaining View Similar

In Stock

-
498

Please send RFQ , we will respond immediately.

Similar Products

Part Number 1-643821-7 1-643820-7   1-643821-0   1-643821-1   1-643821-2
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Receptacle Receptacle Receptacle Receptacle Receptacle
Contact Type Female Socket Female Socket Female Socket Female Socket Female Socket
Number of Positions 17 17 10 11 12
Pitch 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm)
Number of Rows 1 1 1 1 1
Row Spacing - - - - -
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Fastening Type Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp
Cable Termination IDC IDC IDC IDC IDC
Wire Type Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable
Wire Gauge 26 AWG 24 AWG 26 AWG 26 AWG 26 AWG
Features Closed End, Polarizing Key Closed End, Polarizing Key Closed End, Polarizing Key Closed End, Polarizing Key Closed End, Polarizing Key
Contact Finish Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Contact Finish Thickness 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm)
Color Blue White Blue Blue Blue
