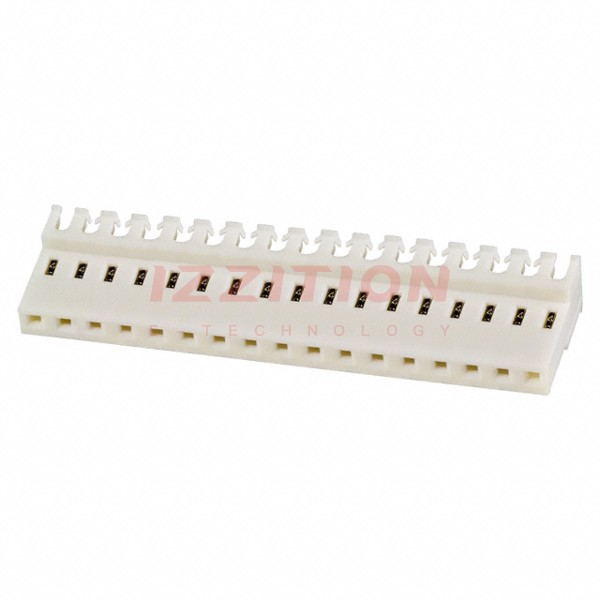

| Part Number | 1-640607-7 | 1-640608-7 | 1-640600-7 | 1-640601-7 | 1-640602-7 | 1-640604-7 | 1-640605-7 | 1-640606-7 | 1-640607-0 | 1-640607-2 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 10 | 12 |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | - | - | Locking Ramp | Locking Ramp | Locking Ramp | - | - | - | - | - |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
| Wire Gauge | 24 AWG | 26 AWG | 20 AWG | 22 AWG | 24 AWG | 18 AWG | 20 AWG | 22 AWG | 24 AWG | 24 AWG |
| Features | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through |
| Contact Finish | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead |
| Contact Finish Thickness | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) |
| Color | White | Blue | Yellow | Red | White | Orange | Yellow | Red | White | White |
