Please send RFQ , we will respond immediately.

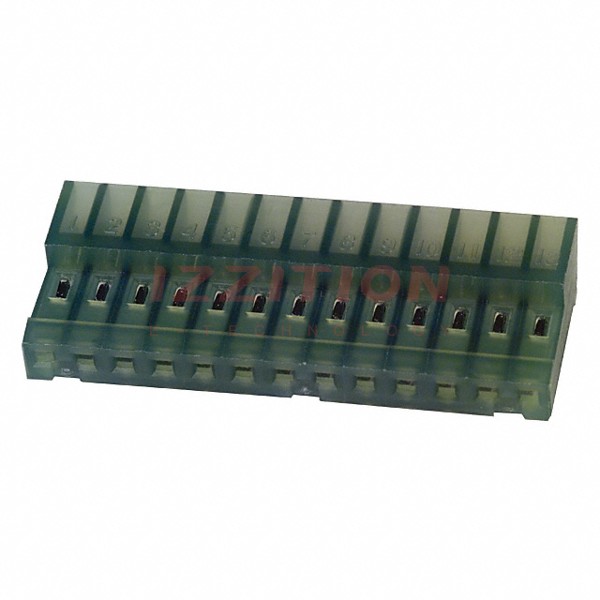

| Part Number | 1-640443-3 | 1-640443-4 | 1-640443-5 | 1-640433-3 | 1-640440-3 | 1-640441-3 | 1-640442-3 | 1-640443-0 | 1-640443-1 | 1-640443-2 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 13 | 14 | 15 | 13 | 13 | 13 | 13 | 10 | 11 | 12 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.156" (3.96mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp | - | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
| Wire Gauge | 28 AWG | 28 AWG | 28 AWG | 22 AWG | 22 AWG | 24 AWG | 26 AWG | 28 AWG | 28 AWG | 28 AWG |
| Features | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End |
| Contact Finish | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead |
| Contact Finish Thickness | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) |
| Color | Green | Green | Green | Red | Red | White | Blue | Green | Green | Green |
