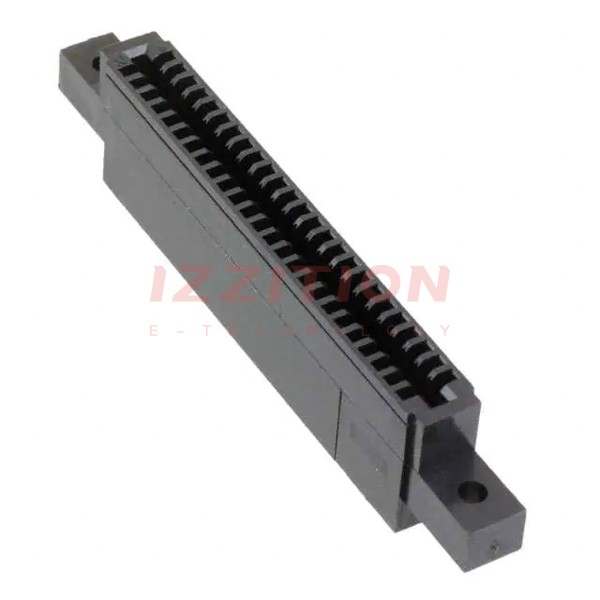

| Part Number | 1-583718-1 | 1-583718-5 | 1-583717-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Discontinued at Digi-Key | Active | Active |
| Card Type | Non Specified - Dual Edge | Non Specified - Dual Edge | Non Specified - Dual Edge |
| Number of Positions | 50 | 80 | 50 |
| Card Thickness | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Features | Flange | Flange | - |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) |
| Color | Black | Black | Black |
| Flange Feature | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | - |
| Material - Insulation | Polyester Thermoplastic, Glass Filled | Polyester Thermoplastic, Glass Filled | Polyester Thermoplastic, Glass Filled |
