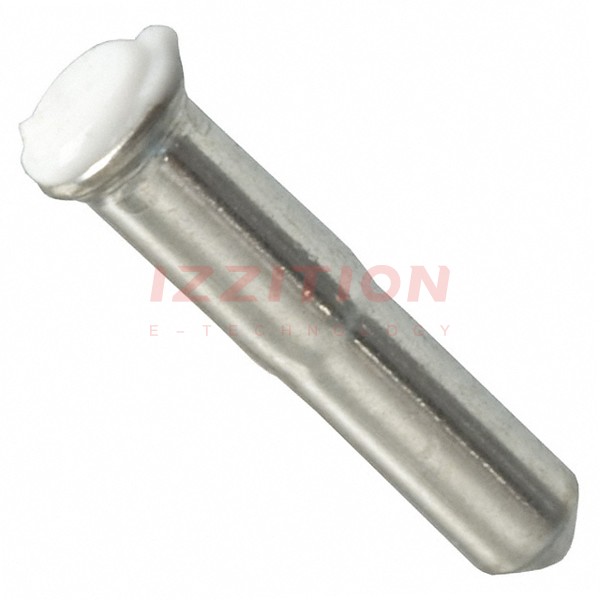

| Part Number | 1-5645986-1 | 1-5645986-2 | 1-645986-1 | 1-5645956-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Tail Type | No Tail | No Tail | No Tail | No Tail |
| Termination | Solder | Solder | Solder | Solder |
| Length - Overall | 0.290" (7.37mm) | 0.290" (7.37mm) | 0.290" (7.37mm) | 0.184" (4.67mm) |
| Accepts Pin Diameter | 0.028" ~ 0.033" (0.71mm ~ 0.84mm) | 0.028" ~ 0.033" (0.71mm ~ 0.84mm) | 0.028" ~ 0.033" (0.71mm ~ 0.84mm) | 0.014" ~ 0.026" (0.36mm ~ 0.66mm) |
| Accepts Square Pin Size | - | - | - | - |
| Pin Hole Diameter | - | - | - | - |
| Mounting Hole Diameter | 0.062" (1.57mm) | 0.062" (1.57mm) | 0.062" (1.57mm) | 0.052" (1.32mm) |
| Flange Diameter | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.075" (1.91mm) |
| Tail Diameter | - | - | - | - |
| Socket Depth | 0.148" ~ 0.260" (3.76mm ~ 6.60mm) | 0.148" ~ 0.260" (3.76mm ~ 6.60mm) | 0.148" ~ 0.260" (3.76mm ~ 6.60mm) | 0.100" ~ 0.170" (2.54mm ~ 4.32mm) |
| Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Contact Finish | Tin | Gold | Tin | Tin |
| Contact Finish Thickness | 100.0µin (2.54µm) | 30.0µin (0.76µm) | 150.0µin (3.81µm) | 100.0µin (2.54µm) |
