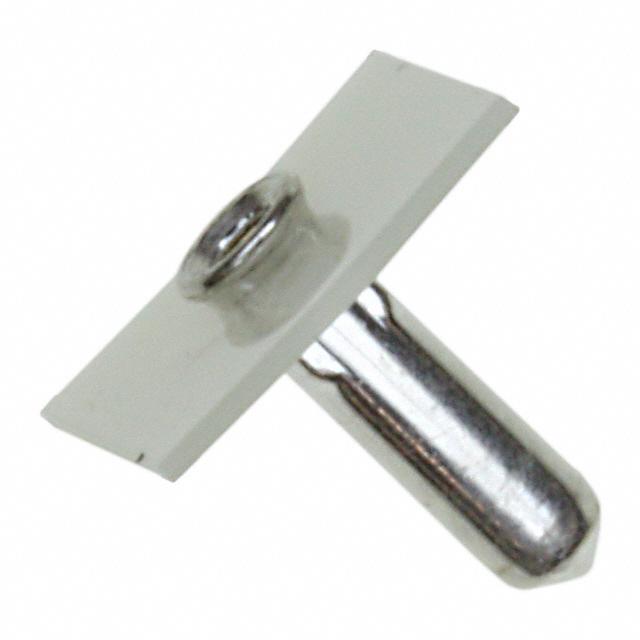

| Part Number | 1-5645502-1 | 1-645502-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete |
| Tail Type | No Tail | No Tail |
| Termination | Solder | Solder |
| Length - Overall | 0.260" (6.60mm) | 0.260" (6.60mm) |
| Accepts Pin Diameter | 0.037" ~ 0.041" (0.94mm ~ 1.04mm) | 0.037" ~ 0.041" (0.94mm ~ 1.04mm) |
| Accepts Square Pin Size | - | - |
| Pin Hole Diameter | - | - |
| Mounting Hole Diameter | 0.069" (1.75mm) | 0.069" (1.75mm) |
| Flange Diameter | 0.088" (2.24mm) | 0.088" (2.24mm) |
| Tail Diameter | - | - |
| Socket Depth | 0.210" (5.33mm) | 0.210" (5.33mm) |
| Contact Material | Beryllium Copper | Beryllium Copper |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
