1-5530844-9

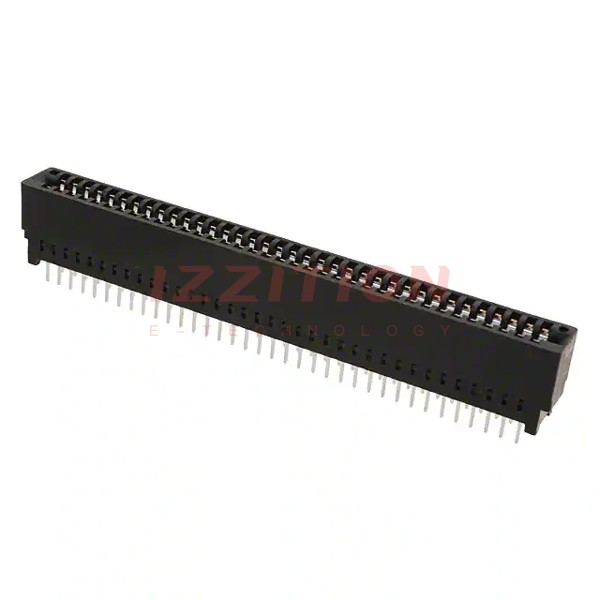

1-5530844-9 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity AMP Connectors 1-5530844-9
Manufacturer No:
1-5530844-9
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1-5530844-9 Datasheet
ECAD Model:
-
Description:
CONN EDGE DUAL FMALE 72POS 0.125
Delivery:
Payment:
Product Attributes
Card Type:
Non Specified - Dual Edge
Gender:
Female
Number of Positions/Bay/Row:
-
Number of Positions:
72
Card Thickness:
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows:
2
Pitch:
0.125" (3.18mm)
Read Out:
Dual
Features:
-
Mounting Type:
Through Hole
Termination:
Solder
Contact Material:
Phosphor Bronze
Contact Finish:
Gold
Contact Finish Thickness:
30.0µin (0.76µm)
Contact Type:
-
Color:
Black
Flange Feature:
-
Operating Temperature:
-55°C ~ 85°C
0
Remaining
View Similar
In Stock
UnitPrice:
-
Quantity:
116
