TE Connectivity AMP Connectors 1-535512-5

Manufacturer No:
1-535512-5
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
1-535512-5 Datasheet
ECAD Model:
-
Description:

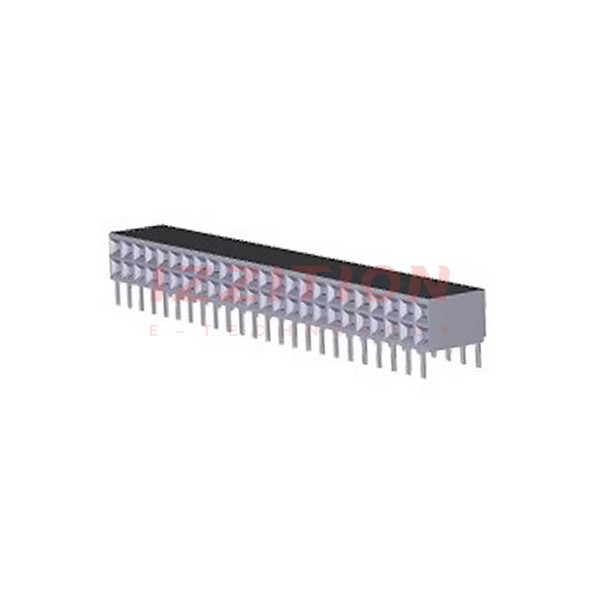

CONN RCPT 48POS 0.1 GOLD PCB R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:-
Number of Positions:48
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Black
Insulation Height:0.238" (6.05mm)
Contact Length - Post:0.115" (2.92mm)
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin-Lead
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):2A
Voltage Rating:-
0 Remaining View Similar

In Stock

$5.96
167

Please send RFQ , we will respond immediately.

Similar Products

Part Number 1-535512-5 1-535512-8   1-535512-7   1-535512-6   1-535512-9   1-535542-5   1-5535512-5   1-535512-0   1-535512-1   1-535512-2   1-535512-3
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active Obsolete Active Obsolete
Connector Type Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle, Bottom or Top Entry Receptacle Receptacle Receptacle Receptacle Receptacle
Contact Type Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket
Style - - - - - Board to Board or Cable - - - - -
Number of Positions 48 16 14 18 22 30 48 70 76 78 80
Number of Positions Loaded All All All All All All All All All All All
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Rows 2 2 2 2 2 2 2 2 2 2 2
Row Spacing - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm)
Insulation Color Black Black Black Black Black Black Black Black Black Black Black
Insulation Height 0.238" (6.05mm) 0.238" (6.05mm) 0.238" (6.05mm) 0.238" (6.05mm) 0.238" (6.05mm) 0.265" (6.73mm) 0.238" (6.05mm) 0.238" (6.05mm) 0.238" (6.05mm) 0.238" (6.05mm) 0.238" (6.05mm)
Contact Length - Post 0.115" (2.92mm) 0.115" (2.92mm) 0.115" (2.92mm) 0.115" (2.92mm) 0.115" (2.92mm) 0.130" (3.30mm) 0.115" (2.92mm) 0.115" (2.92mm) 0.115" (2.92mm) 0.115" (2.92mm) 0.115" (2.92mm)
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -65°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 - UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Contact Finish - Post Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Mated Stacking Heights - - - - - - - - - - -
Ingress Protection - - - - - - - - - - -
Features - - - - - - - - - - -
Current Rating (Amps) 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A
Voltage Rating - - - - - - - - - - -
