1-5178203-6
  • Share:

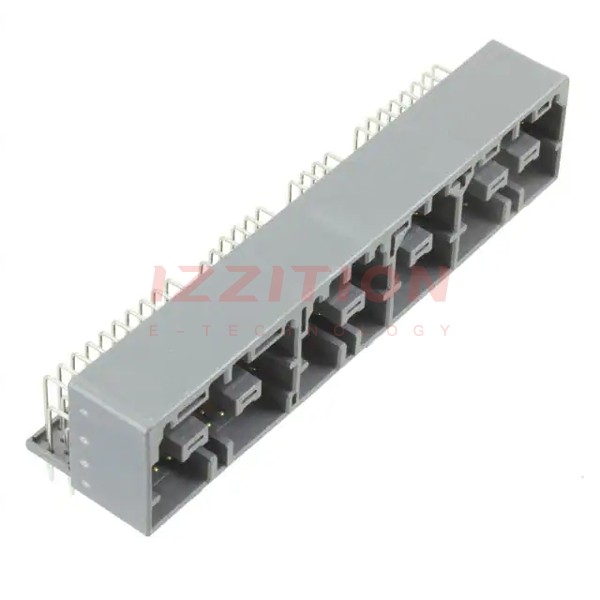

TE Connectivity AMP Connectors 1-5178203-6

Manufacturer No:
1-5178203-6
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
1-5178203-6 Datasheet
ECAD Model:
-
Description:
CONN HEADER BRD EDGE 100POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:-
Contact Type:Tab
Pitch - Mating:-
Number of Positions:100
Number of Rows:4
Row Spacing - Mating:0.098" (2.50mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Board Edge, Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.280" (7.11mm)
Contact Length - Post:0.157" (4.00mm)
Overall Contact Length:-
Insulation Height:-
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin-Lead
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Mounting Brackets
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Gray
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:-
0 Remaining View Similar

In Stock

$42.91
11

Please send RFQ , we will respond immediately.
