1-5176264-4
  • Share:

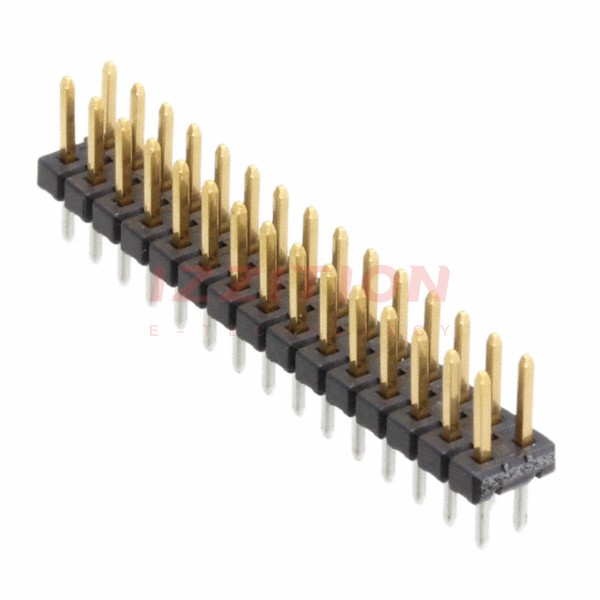

TE Connectivity AMP Connectors 1-5176264-4

Manufacturer No:
1-5176264-4
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
1-5176264-4 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 30POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:30
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.157" (4.00mm)
Contact Length - Post:0.102" (2.60mm)
Overall Contact Length:0.319" (8.10mm)
Insulation Height:0.059" (1.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:200VAC
0 Remaining View Similar

In Stock

-
570

Please send RFQ , we will respond immediately.
