Please send RFQ , we will respond immediately.

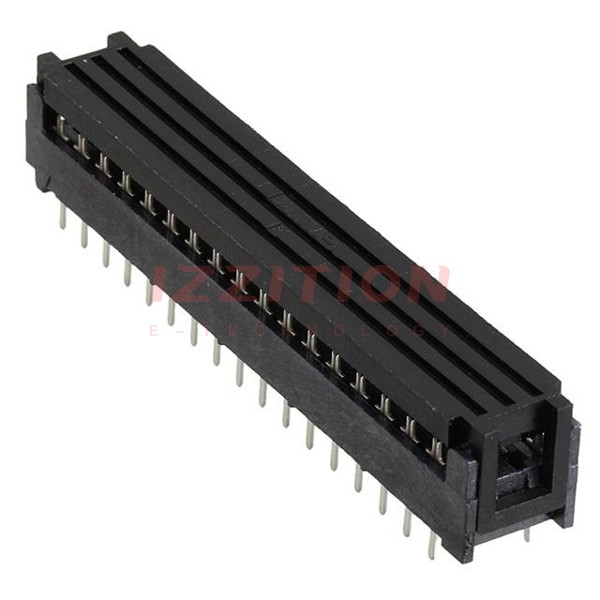

| Part Number | 1-5111595-9 | 1-5111595-1 | 1-5111595-5 | 1-5111595-6 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable |
| Number of Positions | 68 | 50 | 80 | 100 |
| Cable Pitch | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Board-Side Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 4 | 4 | 4 | 4 |
| Row Spacing | 0.075" (1.91mm) | 0.075" (1.91mm) | 0.075" (1.91mm) | 0.075" (1.91mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Cable Termination | IDC | IDC | IDC | IDC |
| Wire Gauge | - | - | - | - |
| Features | Feed Through | Feed Through | Feed Through | Feed Through |
| Contact Finish | Tin | Tin | Tin | Tin |
| Contact Finish Thickness | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) |
| Color | Black | Black | Black | Black |
