Please send RFQ , we will respond immediately.

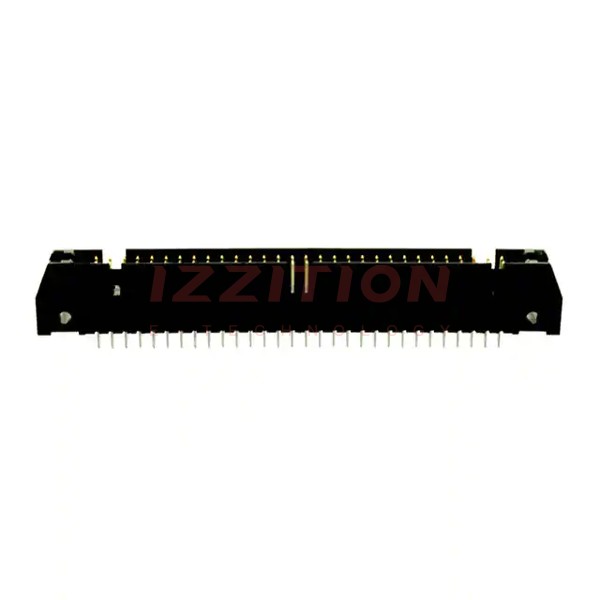

| Part Number | 1-5102156-1 | 1-5102156-2 | 1-5102159-1 | 1-5102154-1 | 1-5102156-0 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions | 60 | 64 | 60 | 60 | 50 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions Loaded | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole | Through Hole, Right Angle | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Length - Mating | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) |
| Contact Length - Post | 0.155" (3.94mm) | 0.155" (3.94mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.155" (3.94mm) |
| Overall Contact Length | 0.684" (17.37mm) | 0.684" (17.37mm) | - | 0.639" (16.23mm) | 0.684" (17.37mm) |
| Insulation Height | 0.549" (13.94mm) | 0.549" (13.94mm) | 0.315" (8.00mm) | 0.549" (13.94mm) | 0.549" (13.94mm) |
| Contact Shape | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 15.0µin (0.38µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin |
| Contact Material | - | - | Brass | - | - |
| Insulation Material | - | - | - | - | - |
| Features | Keying Slot, Mounting Flange | Keying Slot, Mounting Flange | Keying Slot, Mounting Flange | Keying Slot, Mounting Flange | Keying Slot, Mounting Flange |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black | Black | Black | Black |
| Current Rating (Amps) | 1A per Contact | 1A per Contact | 1A per Contact | 1A per Contact | 1A per Contact |
| Voltage Rating | 250VAC | 250VAC | 250VAC | - | 250VAC |
