Please send RFQ , we will respond immediately.

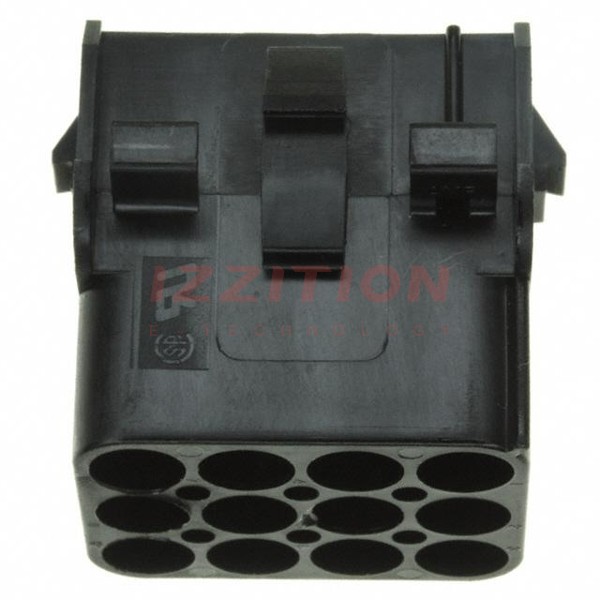

| Part Number | 1-480709-9 | 1-480700-9 | 1-480701-9 | 1-480702-9 | 1-480703-9 | 1-480704-9 | 1-480705-9 | 1-480706-9 | 1-480707-9 | 1-480708-9 | 1-480709-0 | 1-480709-2 | 1-480709-4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Plug | Receptacle | Plug | Receptacle | Plug | Receptacle | Plug | Receptacle | Plug | Receptacle | Receptacle | Receptacle |
| Contact Type | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female |
| Number of Positions | 12 | 3 | 3 | 4 | 4 | 6 | 6 | 9 | 9 | 12 | 12 | 12 | 12 |
| Pitch | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Rows | 3 | 1 | 1 | 1 | 1 | 3 | 2 | 3 | 3 | 3 | 3 | 3 | 3 |
| Row Spacing | 0.250" (6.35mm) | - | - | - | - | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Mounting Type | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Locking Ramp | Latch Lock | Locking Ramp | Latch Lock | Locking Ramp | Latch Lock | Locking Ramp | Latch Lock | Locking Ramp | Latch Lock | Locking Ramp | Locking Ramp | Locking Ramp |
| Color | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Natural | Red | Yellow |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
