Please send RFQ , we will respond immediately.

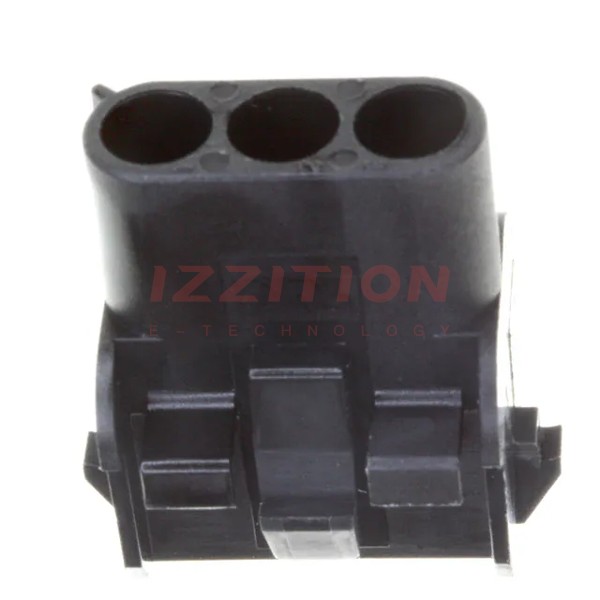

| Part Number | 1-480701-9 | 1-480702-9 | 1-480706-9 | 1-480703-9 | 1-480707-9 | 1-480704-9 | 1-480709-9 | 1-480711-9 | 1-480705-9 | 1-480708-9 | 1-480700-9 | 1-480701-0 | 1-480701-1 | 1-480701-2 | 1-480701-4 | 1-480701-5 | 1-480701-6 | 1-480701-8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Plug | Plug | Receptacle | Receptacle | Plug | Receptacle | Receptacle | Receptacle | Plug | Plug | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female |
| Number of Positions | 3 | 4 | 9 | 4 | 9 | 6 | 12 | 15 | 6 | 12 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Pitch | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Rows | 1 | 1 | 3 | 1 | 3 | 3 | 3 | 3 | 2 | 3 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | 0.250" (6.35mm) | - | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | - | - | - | - | - | - | - | - |
| Mounting Type | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Locking Ramp | Latch Lock | Latch Lock | Locking Ramp | Locking Ramp | Latch Lock | Locking Ramp | Locking Ramp | Locking Ramp | Latch Lock | Latch Lock | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp |
| Color | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Natural | Brown | Red | Yellow | Green | Blue | Gray |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
