Please send RFQ , we will respond immediately.

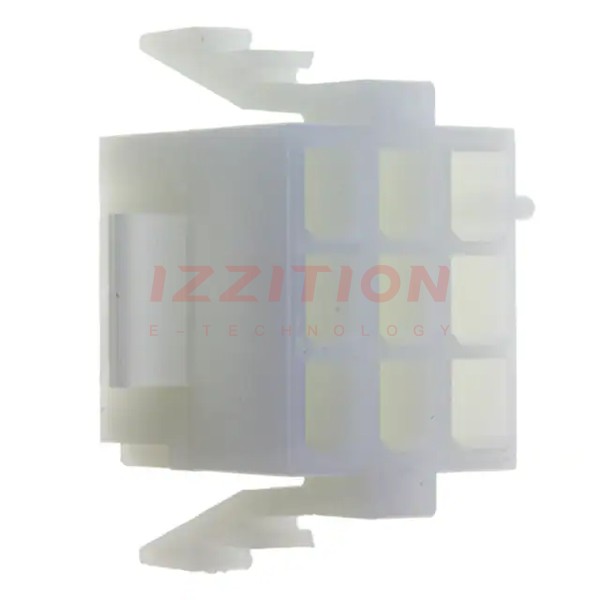

| Part Number | 1-480274-0 | 1-480276-0 | 1-480275-0 | 1-480277-0 | 1-480278-0 | 1-480284-0 | 1-480270-0 | 1-480271-0 | 1-480273-0 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug | Receptacle | Plug | Receptacle | Receptacle | Receptacle | Plug | Receptacle | Plug |
| Contact Type | Female Socket | Male Pin | Female Socket | Male Pin | Male Pin | Male Pin | Female Socket | Male Pin | Female Socket |
| Number of Positions | 9 | 6 | 12 | 9 | 12 | 8 | 6 | 6 | 6 |
| Pitch | 0.202" (5.13mm) | 0.202" (5.13mm) | 0.202" (5.13mm) | 0.202" (5.13mm) | 0.202" (5.13mm) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.202" (5.13mm) |
| Number of Rows | 3 | 3 | 3 | 3 | 3 | 2 | 2 | 2 | 3 |
| Row Spacing | 0.202" (5.13mm) | 0.202" (5.13mm) | 0.202" (5.13mm) | 0.202" (5.13mm) | 0.202" (5.13mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.202" (5.13mm) |
| Mounting Type | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Panel Mount | Panel Mount, Snap-In |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock | Latch Holder | Latch Lock | Latch Holder | Latch Holder | Latch Holder | Latch Lock | Latch Holder | Latch Lock |
| Color | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - |
