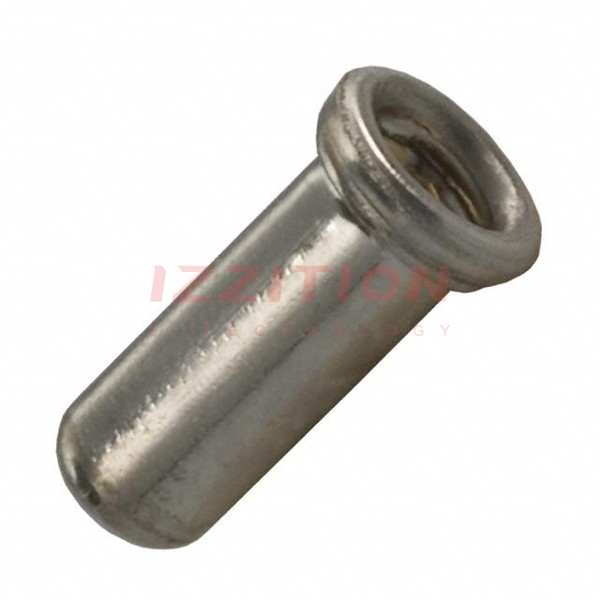

| Part Number | 1-380758-1 | 1-5380758-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active |
| Tail Type | No Tail | No Tail |
| Termination | Solder | Solder |
| Length - Overall | 0.262" (6.65mm) | 0.262" (6.65mm) |
| Accepts Pin Diameter | 0.036" ~ 0.054" (0.91mm ~ 1.37mm) | 0.036" ~ 0.054" (0.91mm ~ 1.37mm) |
| Accepts Square Pin Size | - | - |
| Pin Hole Diameter | 0.058" (1.47mm) | 0.054" (1.37mm) |
| Mounting Hole Diameter | 0.086" ~ 0.089" (2.18mm ~ 2.26mm) | 0.086" ~ 0.089" (2.18mm ~ 2.26mm) |
| Flange Diameter | 0.125" (3.18mm) | 0.125" (3.18mm) |
| Tail Diameter | - | - |
| Socket Depth | 0.145" (3.68mm) | 0.145" (3.68mm) |
| Contact Material | Beryllium Copper | Beryllium Copper |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
