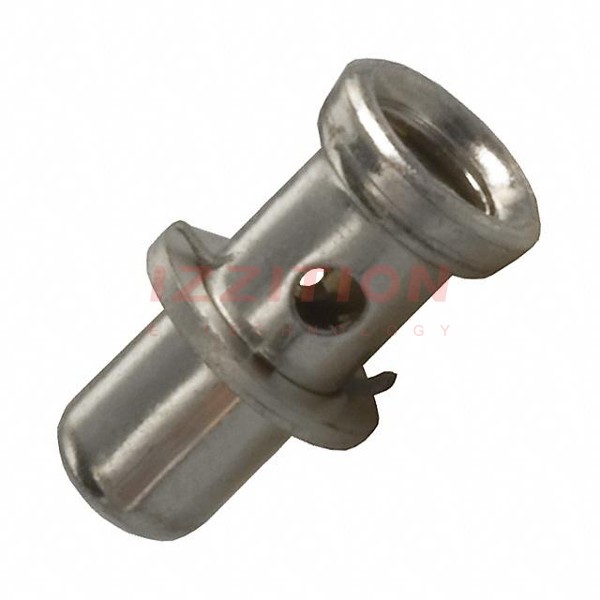

| Part Number | 1-380737-0 | 1-5380737-0 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Tail Type | No Tail | No Tail |
| Termination | Solder | Solder |
| Length - Overall | 0.253" (6.43mm) | 0.253" (6.43mm) |
| Accepts Pin Diameter | 0.018" ~ 0.040" (0.46mm ~ 1.02mm) | 0.018" ~ 0.040" (0.46mm ~ 1.02mm) |
| Accepts Square Pin Size | - | - |
| Pin Hole Diameter | - | - |
| Mounting Hole Diameter | 0.089" (2.26mm) | 0.089" (2.26mm) |
| Flange Diameter | 0.137" (3.48mm) | 0.137" (3.48mm) |
| Tail Diameter | - | - |
| Socket Depth | - | - |
| Contact Material | Beryllium Copper | Beryllium Copper |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
