1-350714-1
  • Share:

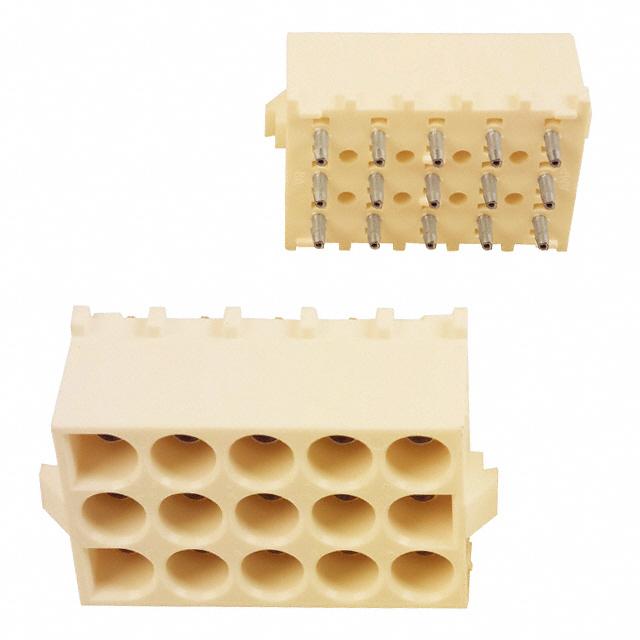

TE Connectivity AMP Connectors 1-350714-1

Manufacturer No:
1-350714-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1-350714-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 15POS 6.35MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.250" (6.35mm)
Number of Positions:15
Number of Rows:3
Row Spacing - Mating:0.250" (6.35mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.155" (3.94mm)
Overall Contact Length:-
Insulation Height:0.550" (13.97mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
415

Please send RFQ , we will respond immediately.
