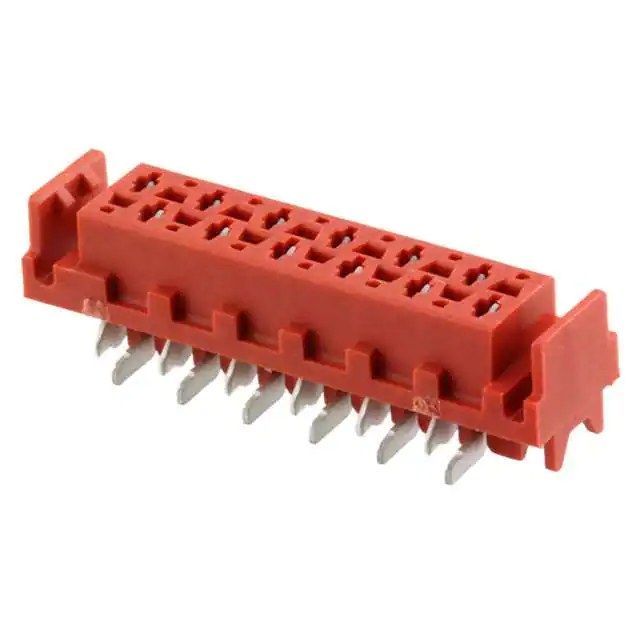

| Part Number | 1-338069-2 | 1-338069-4 | 1-338069-8 | 1-338069-6 | 1-338068-2 | 1-338069-0 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Forked | Forked | Forked | Forked | Forked | Forked |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Number of Positions | 12 | 14 | 18 | 16 | 12 | 10 |
| Number of Positions Loaded | All | All | All | All | All | All |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Termination | Solder | Solder | Solder | Solder | Kinked Pin, Solder | Solder |
| Fastening Type | Friction Lock | Friction Lock | Friction Lock | Friction Lock | Friction Lock | Friction Lock |
| Contact Finish - Mating | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - | - | - | - |
| Insulation Color | Red | Red | Red | Red | Red | Red |
| Insulation Height | 0.209" (5.30mm) | 0.209" (5.30mm) | 0.209" (5.30mm) | 0.209" (5.30mm) | 0.157" (4.00mm) | 0.209" (5.30mm) |
| Contact Length - Post | - | - | - | - | 0.122" (3.10mm) | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin |
| Mated Stacking Heights | - | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
| Current Rating (Amps) | - | - | - | - | - | - |
| Voltage Rating | 100VDC | 100VDC | 100VDC | 100VDC | 100VDC | 100VDC |
