Please send RFQ , we will respond immediately.

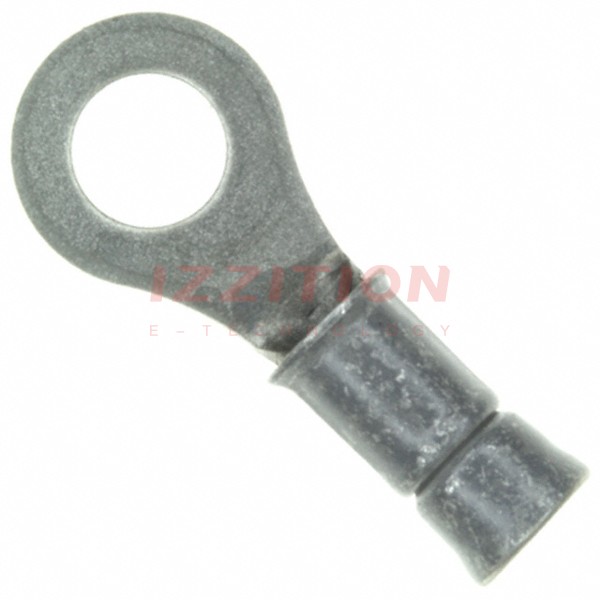

| Part Number | 1-321897-0 | 1-321897-3 | 1-321897-5 | 1-321898-0 | 1-321897-4 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 8 Stud | M4 Stud | M5 Stud | 10 Stud | 10 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) |
| Length - Overall | 0.796" (20.22mm) | 0.796" (20.22mm) | 0.796" (20.22mm) | 0.796" (20.22mm) | 0.796" (20.22mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 18-22 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated | Non-Insulated | Insulated |
| Features | High Temperature, Serrated Termination | High Temperature, Serrated Termination | High Temperature, Serrated Termination | High Temperature, Serrated Termination | High Temperature, Serrated Termination |
| Color | Gray | Green | Green | Green | Gray |
| Contact Material | Chromel | Alumel | Alumel | Alumel | Chromel |
| Contact Finish | - | - | - | - | - |
