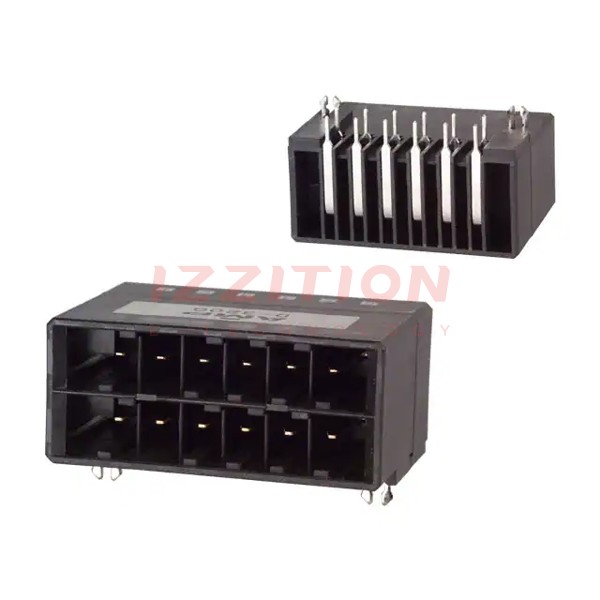

| Part Number | 1-316081-2 | 1-316081-5 | 1-316081-3 | 1-316080-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Header | Header | Header | Header |
| Contact Type | Tab | Tab | Tab | Tab |
| Pitch - Mating | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Number of Positions | 12 | 12 | 12 | 10 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) |
| Number of Positions Loaded | All | All | All | All |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder |
| Fastening Type | Detent Lock | Detent Lock | Detent Lock | Detent Lock |
| Contact Length - Mating | - | - | - | - |
| Contact Length - Post | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) |
| Overall Contact Length | - | - | - | - |
| Insulation Height | 0.668" (16.97mm) | 0.668" (16.97mm) | 0.668" (16.97mm) | 0.668" (16.97mm) |
| Contact Shape | Rectangular | Rectangular | Rectangular | Rectangular |
| Contact Finish - Mating | Gold | Tin | Gold | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | 78.7µin (2.00µm) | 30.0µin (0.76µm) | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Tin | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Insulation Material | Thermoplastic, Polyester, Glass Filled | Thermoplastic, Polyester, Glass Filled | Thermoplastic, Polyester, Glass Filled | Thermoplastic, Polyester, Glass Filled |
| Features | Board Lock | Board Lock | Board Lock | Board Lock |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black | Black | Black |
| Current Rating (Amps) | - | - | - | - |
| Voltage Rating | 600V | 600V | 600V | 600V |
