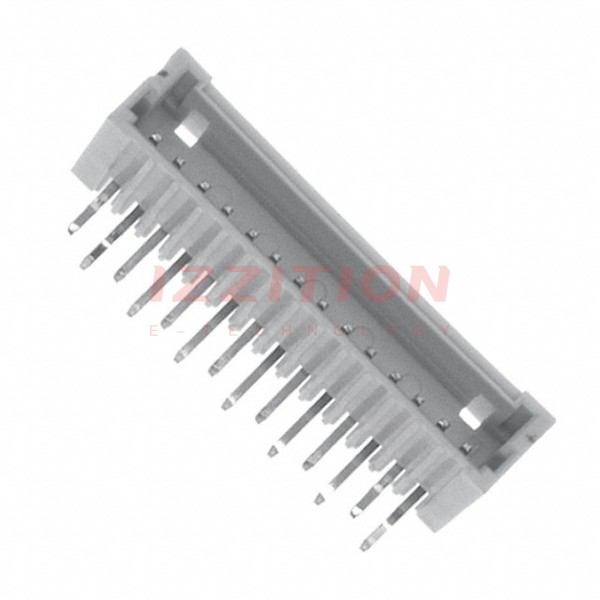

TE Connectivity AMP Connectors-1-292206-4 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	1-292206-4	1-292207-4	1-292206-5	1-292206-7	1-292206-6	1-292206-8	1-292206-9	1-292206-0	1-292206-1	1-292206-2	1-292206-3
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)
Number of Positions	14	14	15	17	16	18	19	10	11	12	13
Number of Rows	1	1	1	1	1	1	1	1	1	1	1
Row Spacing - Mating	-	-	-	-	-	-	-	-	-	-	-
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All	All
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle	Through Hole	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder
Fastening Type	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock
Contact Length - Mating	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)
Contact Length - Post	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)
Overall Contact Length	-	0.307" (7.80mm)	-	-	-	-	-	-	-	-	-
Insulation Height	0.193" (4.90mm)	0.272" (6.91mm)	0.193" (4.90mm)	0.193" (4.90mm)	0.193" (4.90mm)	0.193" (4.90mm)	0.193" (4.90mm)	0.193" (4.90mm)	0.193" (4.90mm)	0.193" (4.90mm)	0.193" (4.90mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Finish Thickness - Mating	-	39.4µin (1.00µm)	-	-	-	-	-	-	-	-	-
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Material	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled
Features	-	Board Guide	-	-	-	-	-	-	-	-	-
Operating Temperature	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Gray	Gray	Gray	Gray	Gray	Gray	Gray	Gray	Gray	Gray	Gray
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge
Voltage Rating	50VAC	50VAC	50VAC	50VAC	50VAC	50VAC	50VAC	50VAC	50VAC	50VAC	50VAC

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.059" (1.50mm)
Number of Positions:	14
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Kinked Pin, Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	0.094" (2.40mm)
Contact Length - Post:	0.118" (3.00mm)
Overall Contact Length:	-
Insulation Height:	0.193" (4.90mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon, Glass Filled
Features:	-
Operating Temperature:	-30°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Gray
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	50VAC
