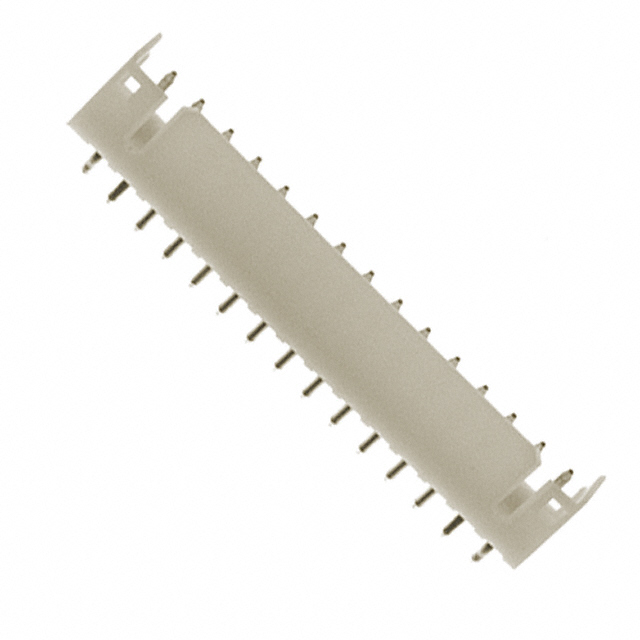

| Part Number | 1-292161-5 | 1-292161-0 | 1-292161-1 | 1-292161-2 | 1-292161-3 | 1-292161-4 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Header | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions | 15 | 10 | 11 | 12 | 13 | 14 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - | - | - |
| Number of Positions Loaded | All | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Shrouded - 3 Wall | Shrouded - 3 Wall | Shrouded - 3 Wall | Shrouded - 3 Wall | Shrouded - 3 Wall |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Kinked Pin, Solder | Kinked Pin, Solder | Kinked Pin, Solder | Kinked Pin, Solder | Kinked Pin, Solder | Kinked Pin, Solder |
| Fastening Type | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock |
| Contact Length - Mating | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) |
| Contact Length - Post | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) |
| Overall Contact Length | 0.370" (9.40mm) | 0.370" (9.40mm) | 0.370" (9.40mm) | 0.370" (9.40mm) | 0.370" (9.40mm) | 0.370" (9.40mm) |
| Insulation Height | 0.268" (6.80mm) | 0.268" (6.80mm) | 0.268" (6.80mm) | 0.268" (6.80mm) | 0.268" (6.80mm) | 0.268" (6.80mm) |
| Contact Shape | Circular | Circular | Circular | Circular | Circular | Circular |
| Contact Finish - Mating | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - | - | - | - |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Features | - | - | - | - | - | - |
| Operating Temperature | - | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Natural | Natural | Natural | Natural | Natural | Natural |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge |
| Voltage Rating | 125VAC | 125VAC | 125VAC | 125VAC | 125VAC | 125VAC |
