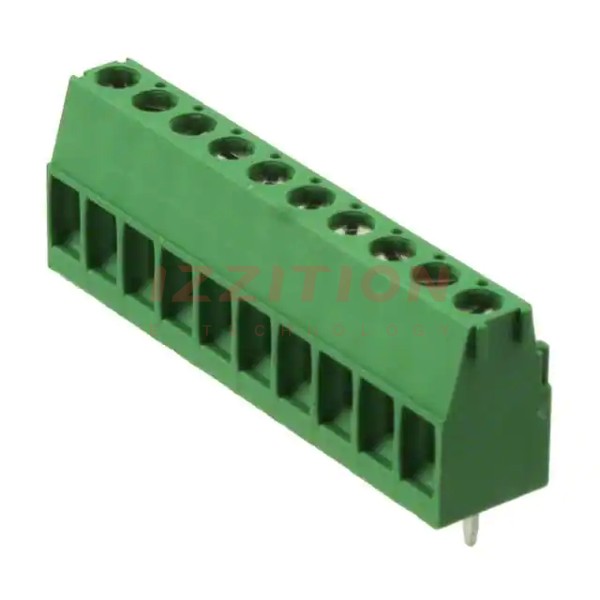

| Part Number | 1-284392-0 | 1-284392-2 | 1-284391-0 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 |
| Positions Per Level | 10 | 12 | 10 |
| Pitch | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.138" (3.50mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board | Horizontal with Board |
| Current | 12 A | 12 A | 12 A |
| Voltage | 300 V | 300 V | 300 V |
| Wire Gauge | 14-30 AWG | 14-30 AWG | 14-30 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Features | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) |
| Color | Green | Green | Green |
