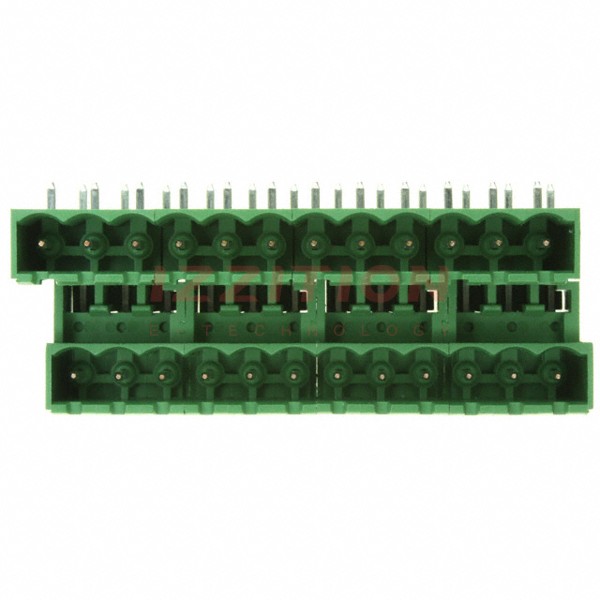

| Part Number | 1-284061-2 | 1-284065-2 | 1-284041-2 | 1-284061-0 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Discontinued at Digi-Key | Active | Active | Discontinued at Digi-Key |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) | Plug, Female Sockets | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 24 | 24 | 12 | 20 |
| Positions Per Level | 12 | 12 | 12 | 10 |
| Number of Levels | 2 | 2 | 1 | 2 |
| Pitch | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Header Orientation | 90°, Right Angle | Vertical | - | 90°, Right Angle |
| Plug Wire Entry | - | - | 270° | - |
| Termination Style | Solder | Solder | Screw - Rising Cage Clamp | Solder |
| Mounting Type | Through Hole | Through Hole | Free Hanging (In-Line) | Through Hole |
| Current - IEC | - | - | - | - |
| Voltage - IEC | - | - | - | - |
| Current - UL | 12 A | 12 A | 15 A | 12 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | - | - | 12-30 AWG | - |
| Wire Gauge or Range - mm² | - | - | 0.05-3mm² | - |
| Color | Green | Green | Green | Green |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin |
| Features | Interlocking (Side) | Interlocking (Side) | Retention Latches (Non-Wire Side) | Interlocking (Side) |
