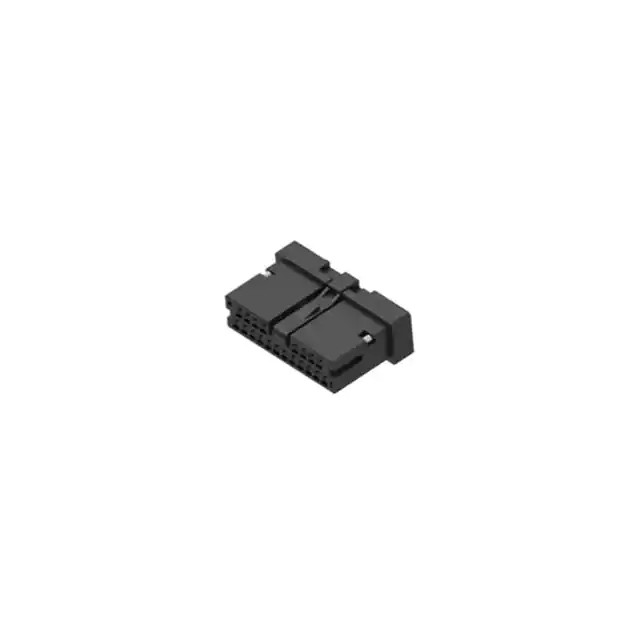

| Part Number | 1-2834465-6 | 1-2834465-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Number of Positions | 16 | 12 |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Length - Mating | - | - |
| Contact Length - Post | - | - |
| Overall Contact Length | - | - |
| Insulation Height | 0.340" (8.64mm) | 0.340" (8.64mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | - | - |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy |
| Insulation Material | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled |
| Features | Solder Retention | Solder Retention |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | 3A | 3A |
| Voltage Rating | - | - |
