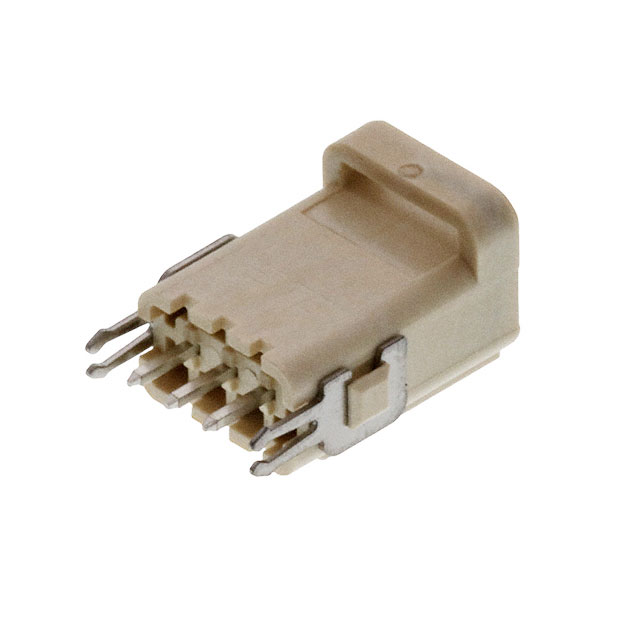

| Part Number | 1-2834237-1 | 1-2834237-2 | 1-2834238-1 | 1-2834236-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Male Pins |
| Number of Positions | 3 | 2 | 3 | 3 |
| Mounting Type | Through Hole | Through Hole | Through Hole, Right Angle | Surface Mount, Right Angle |
| Termination | Solder | Solder | Solder | Solder |
| Pitch | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Fastening Type | Latch Holder | Latch Holder | Latch Holder | Latch Holder |
| Features | Board Lock | Board Lock | Board Lock | - |
| Housing Color | Natural | Natural | Natural | Natural |
| Wire Gauge | - | - | - | - |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Tin | Tin | Tin | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
