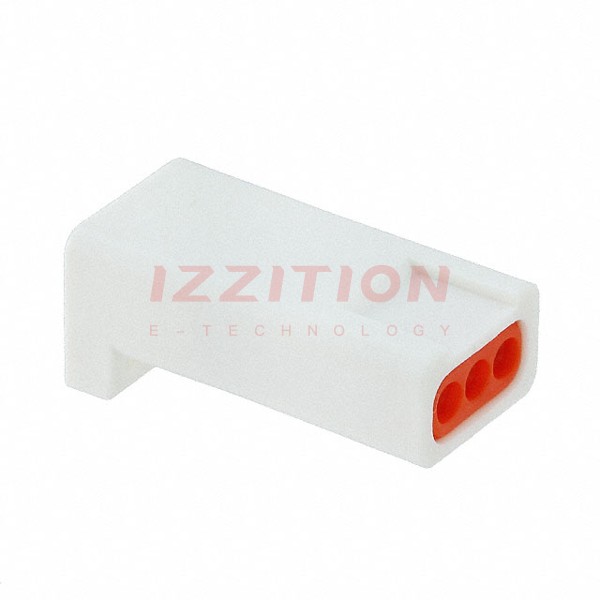

| Part Number | 1-2834075-3 | 2-2834075-3 | 1-2834055-3 | 1-2834074-3 | 1-2834075-2 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Style | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire |
| Connector Type | Receptacle Housing for Pin Contact | Receptacle Housing for Pin Contact | Receptacle | Plug Housing for Socket Contact | Receptacle Housing for Pin Contact |
| Number of Positions | 3 | 3 | 3 | 3 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Poke-In | Crimp | Crimp |
| Pitch | 0.098" (2.50mm) | 0.098" (2.50mm) | - | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Fastening Type | Latch Holder | Latch Holder | Latch Holder | Latch Lock | Latch Holder |
| Features | - | - | - | - | - |
| Housing Color | White | Black | Orange | White | White |
| Wire Gauge | - | - | 16-22 AWG | - | - |
| Contact Material | - | - | Copper Alloy | - | - |
| Contact Finish | - | - | Tin | - | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Thermoplastic | Thermoplastic | Polybutylene Terephthalate (PBT) |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
