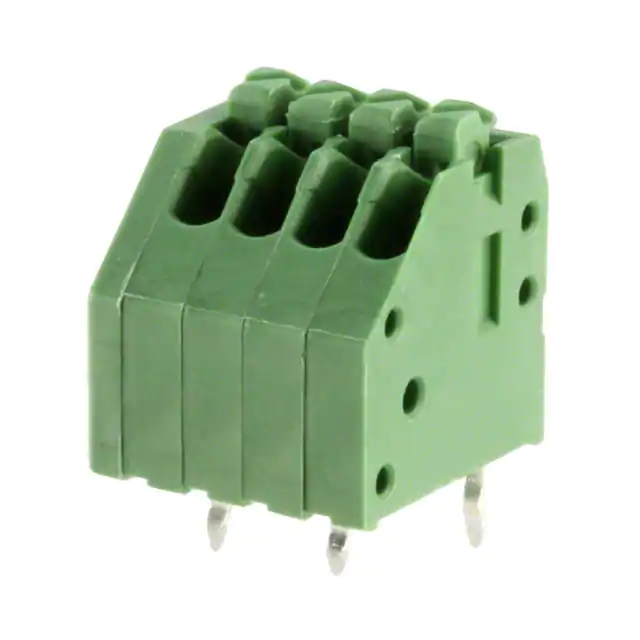

| Part Number | 1-2834021-4 | 1-2834021-6 | 1-2834011-4 | 1-2834021-2 | 1-2834021-3 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 4 | 6 | 4 | 2 | 3 |
| Pitch | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.138" (3.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Mating Orientation | Vertical with Board | Vertical with Board | Vertical with Board | Vertical with Board | Vertical with Board |
| Current | 5 A | 5 A | 6 A | 5 A | 5 A |
| Voltage | 300 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge | 20-26 AWG | 20-26 AWG | 14-20 AWG | 20-26 AWG | 20-26 AWG |
| Mounting Type | Through Hole, Kinked Pin | Through Hole, Kinked Pin | Through Hole, Kinked Pin | Through Hole, Kinked Pin | Through Hole, Kinked Pin |
| Wire Termination | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Leg Spring, Push-In Spring | Screwless - Push Button Clamp | Screwless - Push Button Clamp |
| Features | - | - | - | - | - |
| Color | Green | Green | Green | Green | Green |
