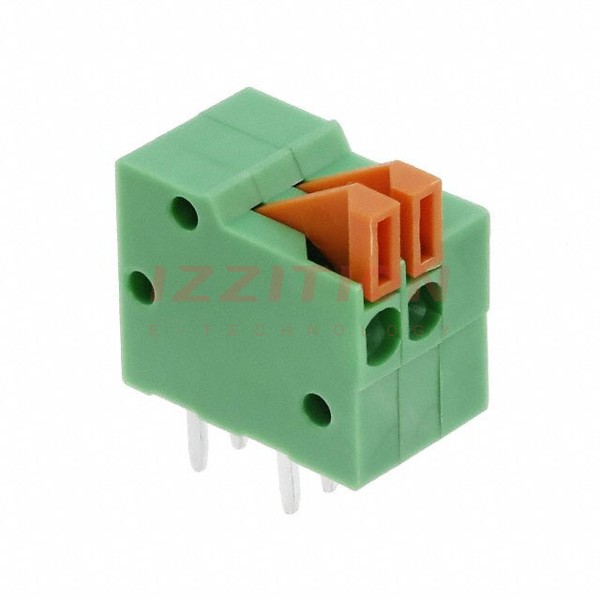

| Part Number | 1-2834016-2 | 1-2834019-2 | 1-2834016-3 | 1-2834016-6 | 1-2834016-4 | 1-2834018-2 | 1-2834017-2 | 1-2834011-2 | 1-2834014-2 | 1-2834015-2 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 2 | 2 | 3 | 6 | 4 | 2 | 2 | 2 | 2 | 2 |
| Pitch | 0.100" (2.54mm) | 0.138" (3.50mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.197" (5.00mm) | 0.150" (3.81mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.100" (2.54mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Vertical with Board | Horizontal and Vertical with Board | Vertical with Board |
| Current | 6 A | 6 A | 6 A | 6 A | 6 A | 10 A | 8 A | 6 A | 10 A | 6 A |
| Voltage | 150 V | 300 V | 150 V | 150 V | 150 V | 300 V | 300 V | 300 V | 300 V | 150 V |
| Wire Gauge | 20-26 AWG | 16-20 AWG | 20-26 AWG | 20-26 AWG | 20-26 AWG | 14-20 AWG | 16-20 AWG | 14-20 AWG | 16-20 AWG | 20-26 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole, Kinked Pin | Through Hole, Kinked Pin | Through Hole |
| Wire Termination | Screwless - Leg Spring, Push-In Spring | Screwless | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Spring Cage, Tension Clamp |
| Features | - | - | - | - | - | - | Interlocking (Side) | - | - | - |
| Color | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green |
