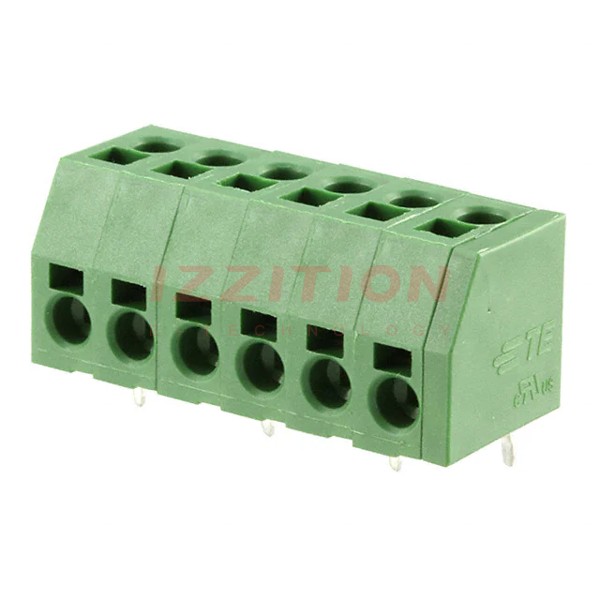

| Part Number | 1-2834014-6 | 1-2834015-6 | 1-2834016-6 | 1-2834018-6 | 1-2834019-6 | 1-2834011-6 | 1-2834014-2 | 1-2834014-3 | 1-2834014-4 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 6 | 6 | 6 | 6 | 6 | 6 | 2 | 3 | 4 |
| Pitch | 0.197" (5.00mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Mating Orientation | Horizontal and Vertical with Board | Vertical with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Vertical with Board | Horizontal and Vertical with Board | Horizontal and Vertical with Board | Horizontal and Vertical with Board |
| Current | 10 A | 6 A | 6 A | 10 A | 6 A | 6 A | 10 A | 10 A | 10 A |
| Voltage | 300 V | 150 V | 150 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge | 16-20 AWG | 20-26 AWG | 20-26 AWG | 14-20 AWG | 16-20 AWG | 14-20 AWG | 16-20 AWG | 16-20 AWG | 16-20 AWG |
| Mounting Type | Through Hole, Kinked Pin | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole, Kinked Pin | Through Hole, Kinked Pin | Through Hole, Kinked Pin | Through Hole, Kinked Pin |
| Wire Termination | Screwless - Leg Spring, Push-In Spring | Screwless - Spring Cage, Tension Clamp | Screwless - Leg Spring, Push-In Spring | Screwless - Push Button Clamp | Screwless | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring |
| Features | - | - | - | - | - | - | - | - | - |
| Color | Green | Green | Green | Green | Green | Green | Green | Green | Green |
