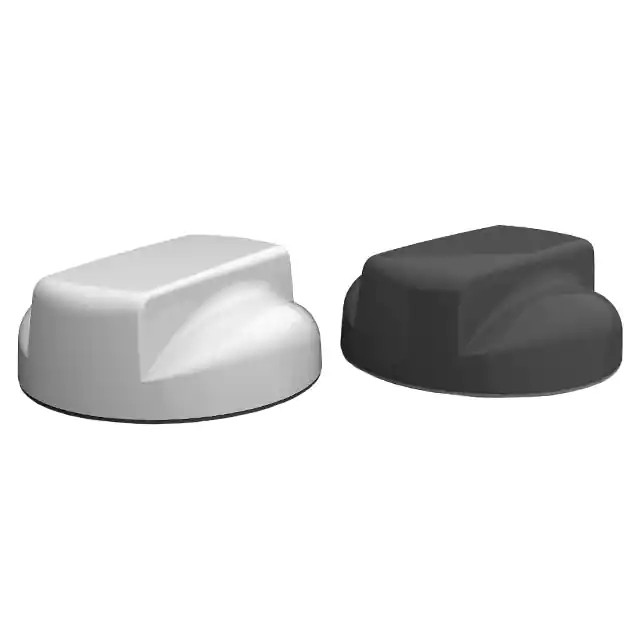

| Part Number | 1-2823595-2 | 1-2823596-2 | 1-2823597-2 | 1-2823598-2 | 1-2823599-2 | 1-2823595-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| RF Family/Standard | Cellular, Navigation, WiFi | Cellular, WiFi | Cellular, WiFi | Cellular, WiFi | Cellular, WiFi | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band | Wide Band | Wide Band | Wide Band | Wide Band | UHF (300MHz ~ 1GHz) |
| Frequency (Center/Band) | 829MHz, 2.2GHz | 829MHz, 2.2GHz | 829MHz, 2.2GHz, 5.4GHz | 829MHz, 2.2GHz, 5.4GHz | 829MHz, 2.2GHz, 5.4GHz | 829MHz |
| Frequency Range | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | 698MHz ~ 960MHz |
| Antenna Type | Dome | Dome | Dome | Dome | Dome | Dome |
| Number of Bands | 2 | 2 | 3 | 3 | 3 | 1 |
| VSWR | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | - |
| Return Loss | - | - | - | - | - | - |
| Gain | 5dBi | 5dBi | 5dBi | 5dBi | 5dBi | - |
| Power - Max | 50 W | 50 W | 50 W | 50 W | 50 W | - |
| Features | - | - | - | - | - | - |
| Termination | SMA Male | SMA Male | SMA Male | SMA Male | SMA | SMA Male |
| Ingress Protection | - | IP66 | IP66 | IP66 | IP66 | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Height (Max) | 2.441" (62.00mm) | 2.441" (62.00mm) | 2.441" (62.00mm) | 2.441" (62.00mm) | 2.441" (62.00mm) | 2.441" (62.00mm) |
| Applications | GPS, LTE, WLAN | LTE, WLAN | LTE, WLAN | LTE, WLAN | LTE, WLAN | GPS, GSM, LTE, Wi-Fi, WiMax |
