Please send RFQ , we will respond immediately.

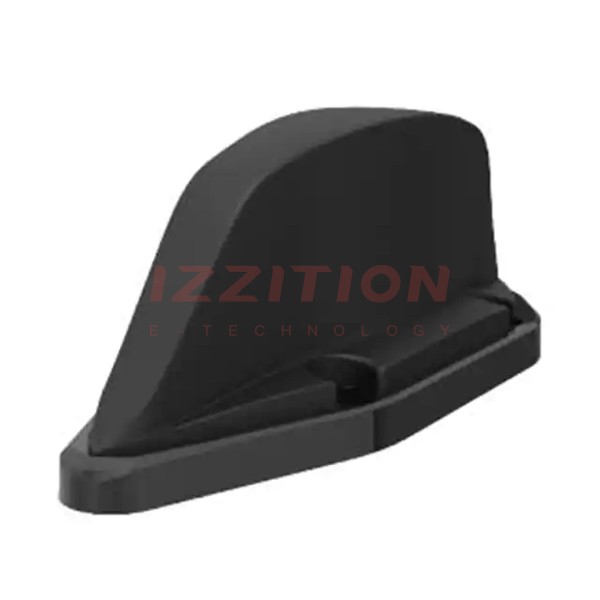

| Part Number | 1-2823592-1 | 1-2823593-1 | 1-2823594-1 | 1-2823596-1 | 1-2823595-1 | 1-2823597-1 | 1-2823598-1 | 1-2823599-1 | 1-2823591-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| RF Family/Standard | Cellular, Navigation, WiFi | Cellular, Navigation, WiFi | Cellular, Navigation, WiFi | Cellular, WiFi | Cellular, Navigation, WiFi | Cellular, WiFi | Cellular, WiFi | Cellular, WiFi | Cellular, Navigation, WiFi |
| Frequency Group | UHF (300MHz ~ 1GHz) | UHF (300MHz ~ 1GHz) | Wide Band | Wide Band | UHF (300MHz ~ 1GHz) | Wide Band | Wide Band | Wide Band | Wide Band |
| Frequency (Center/Band) | 829MHz | 829MHz | 829MHz, 3.9GHz | 829MHz, 2.2GHz | 829MHz | 829MHz, 2.2GHz, 5.4GHz | 829MHz, 2.2GHz, 5.4GHz | 829MHz, 2.2GHz, 5.4GHz | 829MHz, 1.575GHz, 2.2GHz, 5.5GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.56GHz ~ 1.61GHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | 698MHz ~ 960MHz | 698MHz ~ 960MHz, 1.71GHz ~ 6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | 698MHz ~ 960MHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.61GHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz |
| Antenna Type | Module | Module | Module | Dome | Dome | Dome | Dome | Dome | Module |
| Number of Bands | 1 | 1 | 2 | 2 | 1 | 3 | 3 | 3 | 2 |
| VSWR | - | - | - | 2.5 | - | 2.5 | 2.5 | 2.5 | - |
| Return Loss | - | - | - | - | - | - | - | - | - |
| Gain | - | - | - | 5dBi | - | 5dBi | 5dBi | 5dBi | - |
| Power - Max | - | - | - | 50 W | - | 50 W | 50 W | 50 W | - |
| Features | - | - | - | - | - | - | - | - | - |
| Termination | N Type Female, TNC Female | N Type Female | N Type Female | SMA Male | SMA Male | SMA Male | SMA Male | SMA | N Type Female |
| Ingress Protection | - | - | - | IP66 | - | IP66 | IP66 | IP66 | - |
| Mounting Type | Through Hole | Surface Mount | Surface Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Through Hole |
| Height (Max) | 4.055" (103.00mm) | 4.528" (115.00mm) | 4.331" (110.00mm) | 2.441" (62.00mm) | 2.441" (62.00mm) | 2.441" (62.00mm) | 2.441" (62.00mm) | 2.441" (62.00mm) | 4.055" (103.00mm) |
| Applications | GPS, GSM, WiMax™, WLAN | GPS, GSM, WiMax™, WLAN | GPS, GSM, WiMax™, WLAN | LTE, WLAN | GPS, GSM, LTE, Wi-Fi, WiMax | LTE, WLAN | LTE, WLAN | LTE, WLAN | GPS, GSM, WiMax™, WLAN |
