1-2823445-8
  • Share:

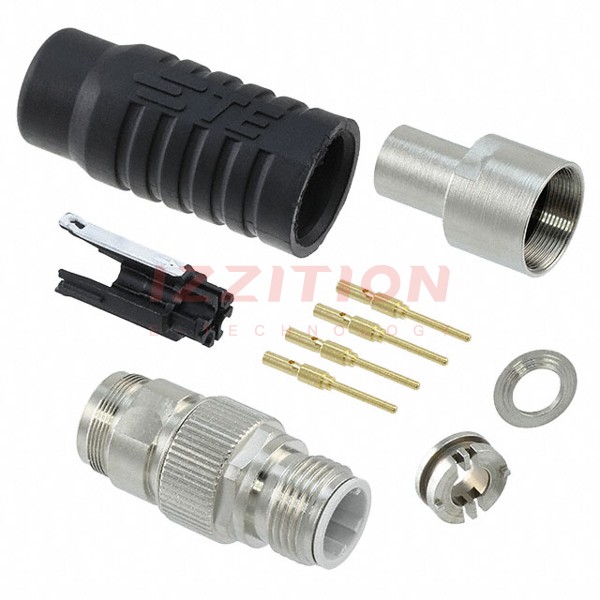

TE Connectivity AMP Connectors 1-2823445-8

Manufacturer No:
1-2823445-8
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1-2823445-8 Datasheet
ECAD Model:
-
Description:
CONN PLUG MALE 4POS GOLD CRIMP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug, Male Pins
Number of Positions:4
Shell Size - Insert:M12-4
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Crimp
Fastening Type:Threaded
Orientation:D
Primary Material:Metal
Shell Material:Brass
Shell Finish:Nickel
Contact Finish - Mating:Gold
Color:Silver
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:Backshell
Shielding:Shielded
Current Rating (Amps):4A
Voltage Rating:50VDC
Cable Opening:-
Operating Temperature:-40°C ~ 85°C
0 Remaining View Similar

In Stock

$58.86
11

Please send RFQ , we will respond immediately.
