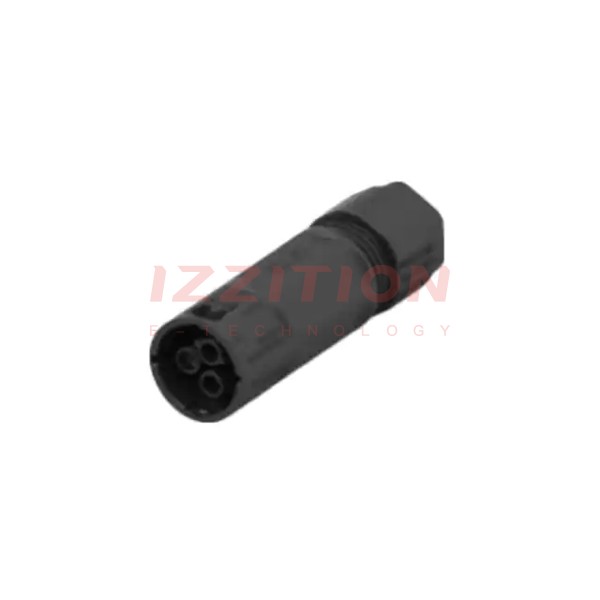

| Part Number | 1-2379237-1 | 1-2379238-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Plug, Female Sockets | Receptacle, Male Pins |
| Number of Positions | 3 (Power) | 3 (Power) |
| Shell Size - Insert | - | - |
| Shell Size, MIL | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - |
| Termination | Screw | Screw |
| Fastening Type | Latch Lock, Push-Pull | Latch Lock, Push-Pull |
| Orientation | A | A |
| Primary Material | Plastic | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT), Polycarbonate (PC) | Polybutylene Terephthalate (PBT), Polycarbonate (PC) |
| Shell Finish | - | - |
| Contact Finish - Mating | Tin | Tin |
| Color | Black | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | Backshell | Backshell |
| Shielding | Unshielded | Unshielded |
| Current Rating (Amps) | 20A | 20A |
| Voltage Rating | 600VAC | 600VAC |
| Cable Opening | 0.276" ~ 0.394" (7.00mm ~ 10.00mm) | 0.276" ~ 0.394" (7.00mm ~ 10.00mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
