1-2367196-0
  • Share:

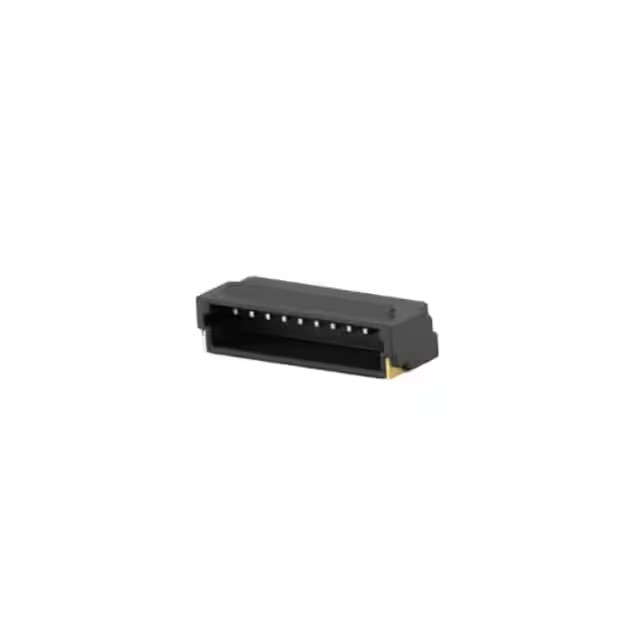

TE Connectivity AMP Connectors 1-2367196-0

Manufacturer No:
1-2367196-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tape & Reel (TR)
Datasheet:
1-2367196-0 Datasheet
ECAD Model:
-
Description:
1.0MM WTB RIGHT ANGLE TYPE WITH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:10
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.087" (2.21mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.114" (2.90mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:5.00µin (0.127µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Halogen Free
Features:Pick and Place, Solder Retention
Operating Temperature:-40°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2A
Voltage Rating:50V
0 Remaining View Similar

In Stock

$1.35
510

Please send RFQ , we will respond immediately.
