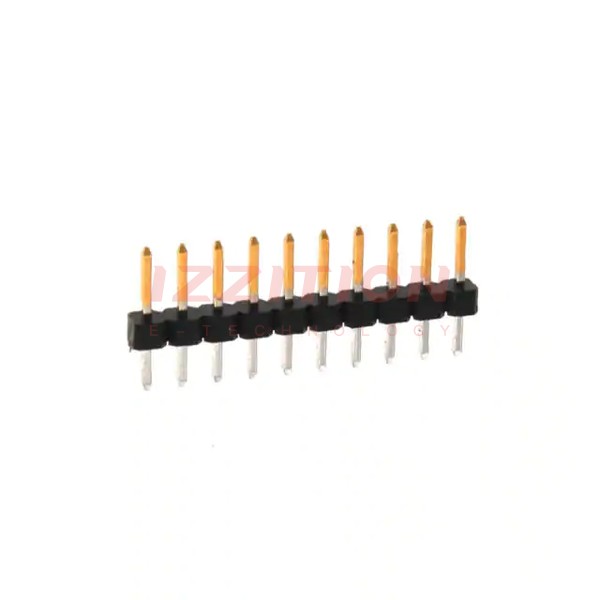

TE Connectivity AMP Connectors 1-2355045-0

Manufacturer No:
1-2355045-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
1-2355045-0 Datasheet
ECAD Model:
-
Description:
10P,2MM,BRK HDR,SRVT,2.8,0.1AU,T
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:10
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.157" (4.00mm)
Contact Length - Post:0.110" (2.79mm)
Overall Contact Length:0.327" (8.30mm)
Insulation Height:0.059" (1.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.94µin (0.100µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-40°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2A
Voltage Rating:125VAC/DC
0 Remaining View Similar

In Stock

$0.72
641

Please send RFQ , we will respond immediately.
