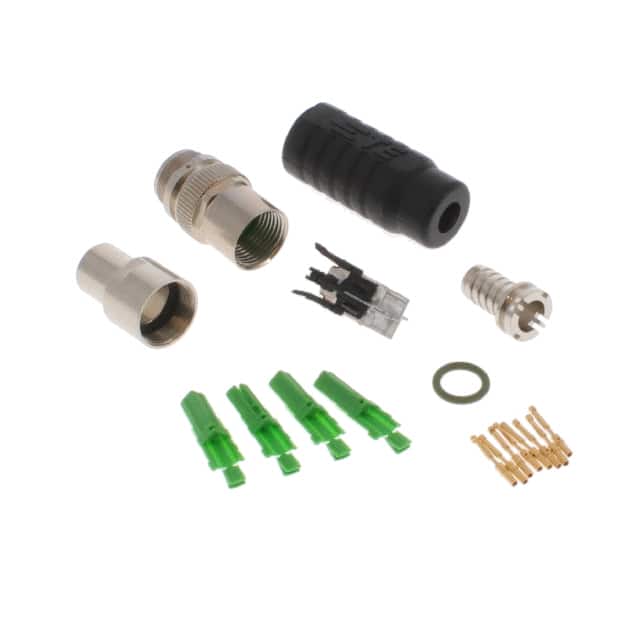

| Part Number | 1-2315715-2 | 1-2315714-2 | 1-2315715-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Receptacle, Female Sockets | Plug, Male Pins | Receptacle, Female Sockets |
| Number of Positions | 8 | 8 | 8 |
| Shell Size - Insert | M12-8 | M12-8 | M12-8 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - |
| Termination | Crimp | Crimp | Crimp |
| Fastening Type | Threaded | Threaded | Threaded |
| Orientation | X | X | X |
| Primary Material | Metal | Metal | Metal |
| Shell Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Shell Finish | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold |
| Color | Silver | Silver | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell | Backshell | Backshell |
| Shielding | Shielded | Shielded | Shielded |
| Current Rating (Amps) | 0.5A | 0.5A | 0.5A |
| Voltage Rating | - | - | - |
| Cable Opening | - | - | - |
| Operating Temperature | - | - | - |
