Please send RFQ , we will respond immediately.

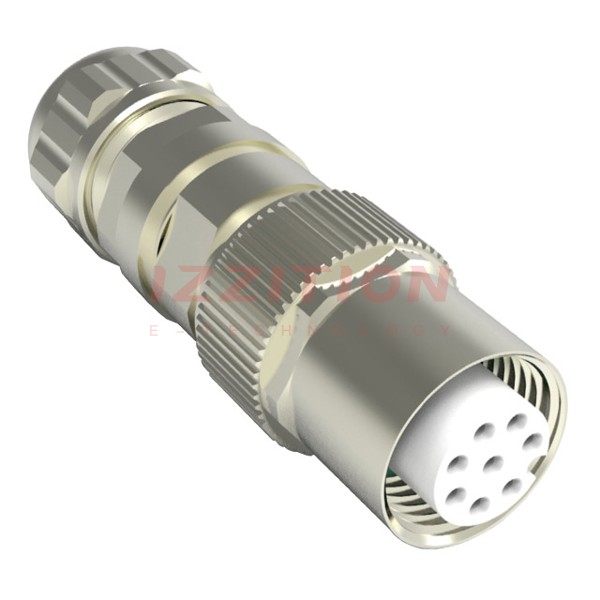

| Part Number | 1-2308323-2 | 1-2308323-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Plug Housing | Plug Housing |
| Type | For Female Sockets | For Female Sockets |
| Number of Positions | 8 | 8 |
| Shell Size - Insert | M12-8 | M12-8 |
| Shell Size, MIL | - | - |
| Contact Type | Crimp | Crimp |
| Contact Size | 0.8mm | 0.8mm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - |
| Fastening Type | Threaded | Threaded |
| Orientation | A | A |
| Primary Material | - | - |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Finish | Nickel | Nickel |
| Housing Color | Silver | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - |
| Features | Backshell, Cable Clamp, Coupling Nut | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Shielded | Shielded |
