1-2271457-6
  • Share:

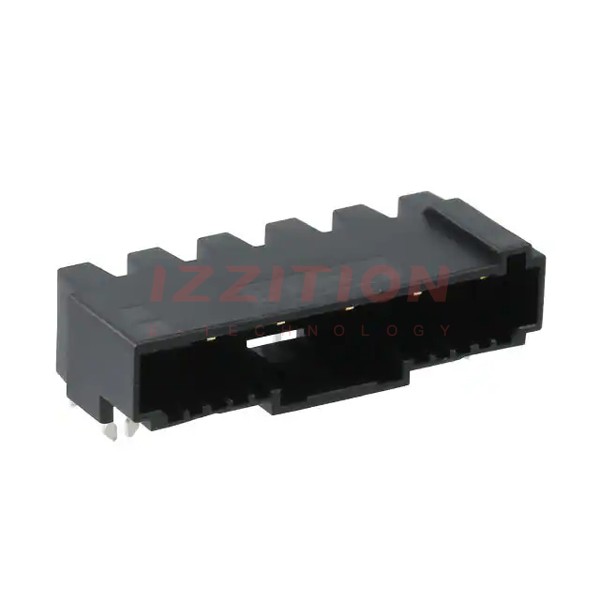

TE Connectivity AMP Connectors 1-2271457-6

Manufacturer No:
1-2271457-6
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
1-2271457-6 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 6POS 7.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug
Contact Type:Tab
Pitch - Mating:0.295" (7.50mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.472" (12.00mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Board Lock
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:-
Current Rating (Amps):14.5A
Voltage Rating:600VAC
0 Remaining View Similar

In Stock

$4.96
25

Please send RFQ , we will respond immediately.
