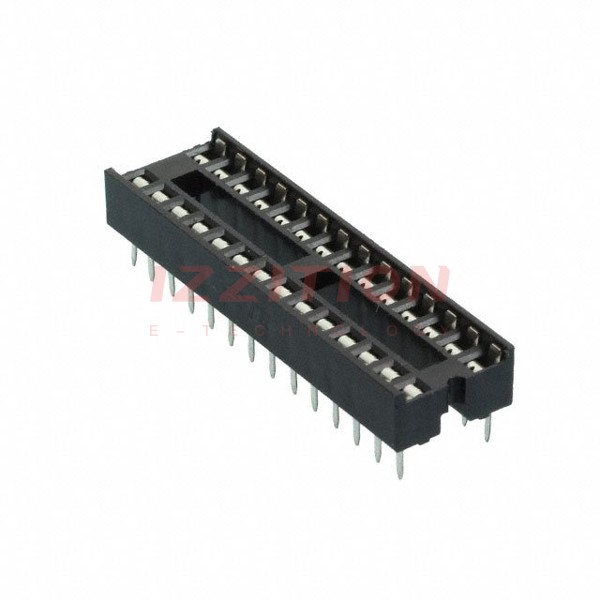

| Part Number | 1-2199298-9 | 1-2199298-1 | 1-2199298-2 | 1-2199298-3 | 1-2199298-4 | 1-2199298-5 | 1-2199298-6 | 1-2199298-8 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 28 (2 x 14) | 6 (2 x 3) | 8 (2 x 4) | 14 (2 x 7) | 16 (2 x 8) | 18 (2 x 9) | 20 (2 x 10) | 24 (2 x 12) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | 60.0µin (1.52µm) | 60.0µin (1.52µm) | 60.0µin (1.52µm) | 60.0µin (1.52µm) | 60.0µin (1.52µm) | 60.0µin (1.52µm) | 60.0µin (1.52µm) | 60.0µin (1.52µm) |
| Contact Material - Mating | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Features | Open Frame | Open Frame | Open Frame | Open Frame | Open Frame | Open Frame | Open Frame | Open Frame |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Post | - | - | - | - | - | - | - | - |
| Contact Material - Post | Brass, Copper | Brass, Copper | Brass, Copper | Brass, Copper | Brass, Copper | Brass, Copper | Brass, Copper | Brass, Copper |
| Housing Material | Polybutylene Terephthalate (PBT), Thermoplastic, Glass Filled | Polybutylene Terephthalate (PBT), Thermoplastic, Glass Filled | Polybutylene Terephthalate (PBT), Thermoplastic, Glass Filled | Polybutylene Terephthalate (PBT), Thermoplastic, Glass Filled | Polybutylene Terephthalate (PBT), Thermoplastic, Glass Filled | Polybutylene Terephthalate (PBT), Thermoplastic, Glass Filled | Polybutylene Terephthalate (PBT), Thermoplastic, Glass Filled | Polybutylene Terephthalate (PBT), Thermoplastic, Glass Filled |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
